Rear Object Sensor Wiring Harness Replacement

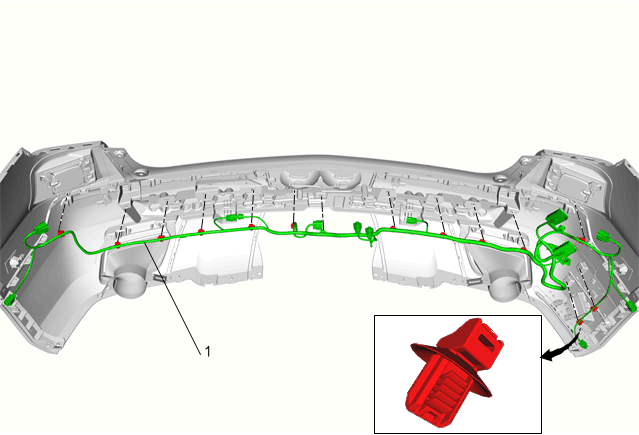

Fig 1: Rear Object Sensor Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Object Sensor Wiring Harness Procedure Disconnect all electrical connectors. Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.

Callout

Component Name

Preliminary Procedures
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement .

Rear Object Sensor Wiring Harness

Procedure

Disconnect all electrical connectors.
Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.
