Serial Data Gateway Module Replacement

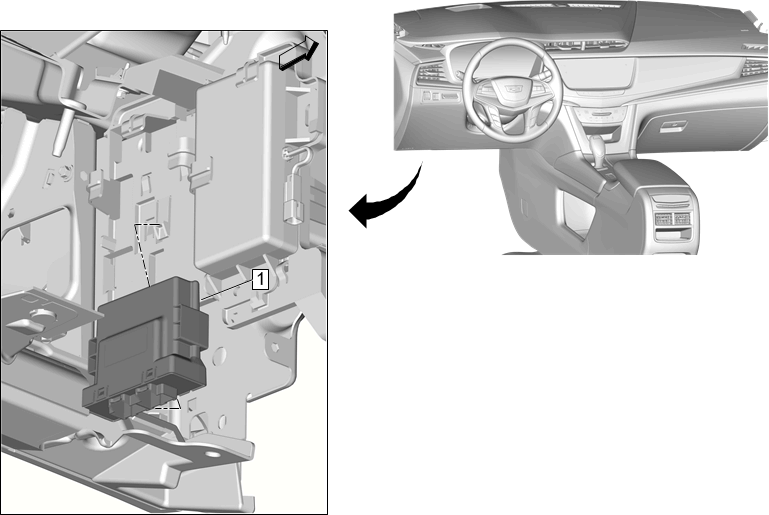

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side

Serial Data Gateway Module

Procedure
