Side Object Sensing Alert Module Replacement

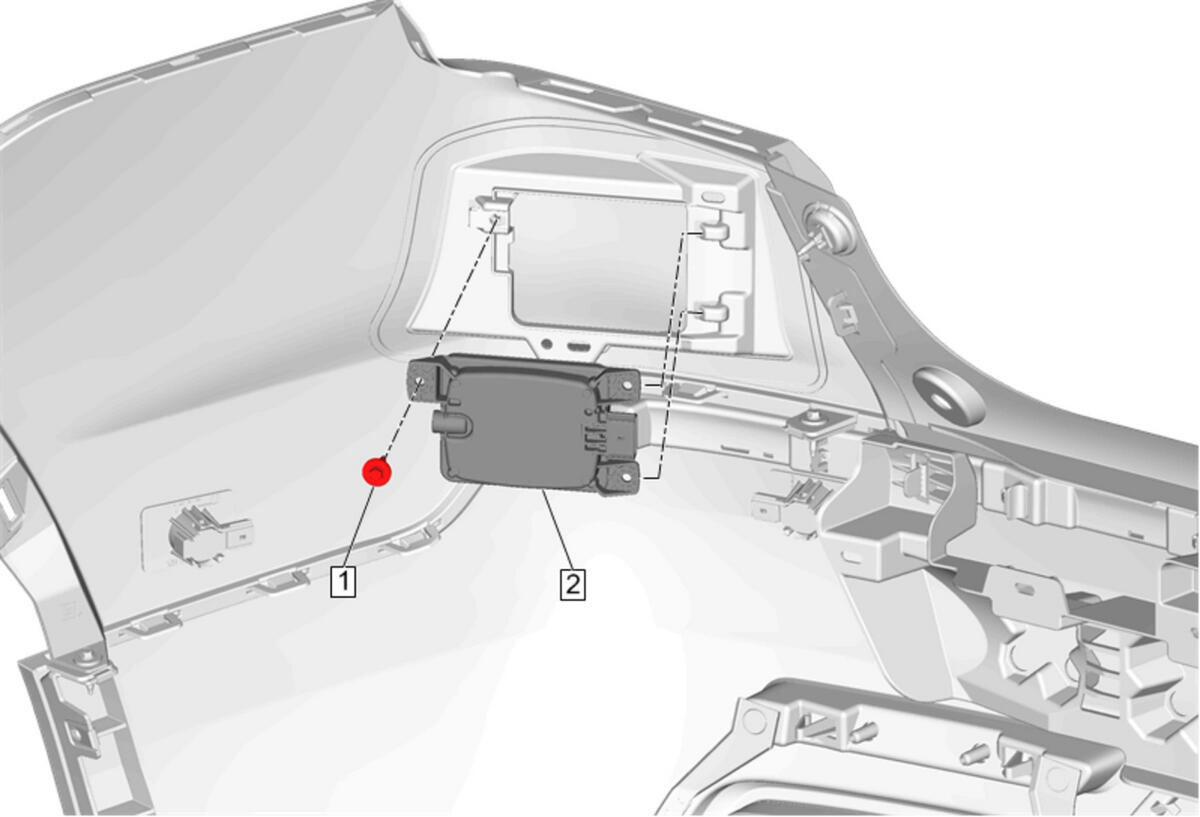

Fig 1: Side Object Sensing Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement
1	Side Object Sensing Alert Module Bolt CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Side Object Sensing Alert Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement

Side Object Sensing Alert Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
