Video Processing Module Replacement

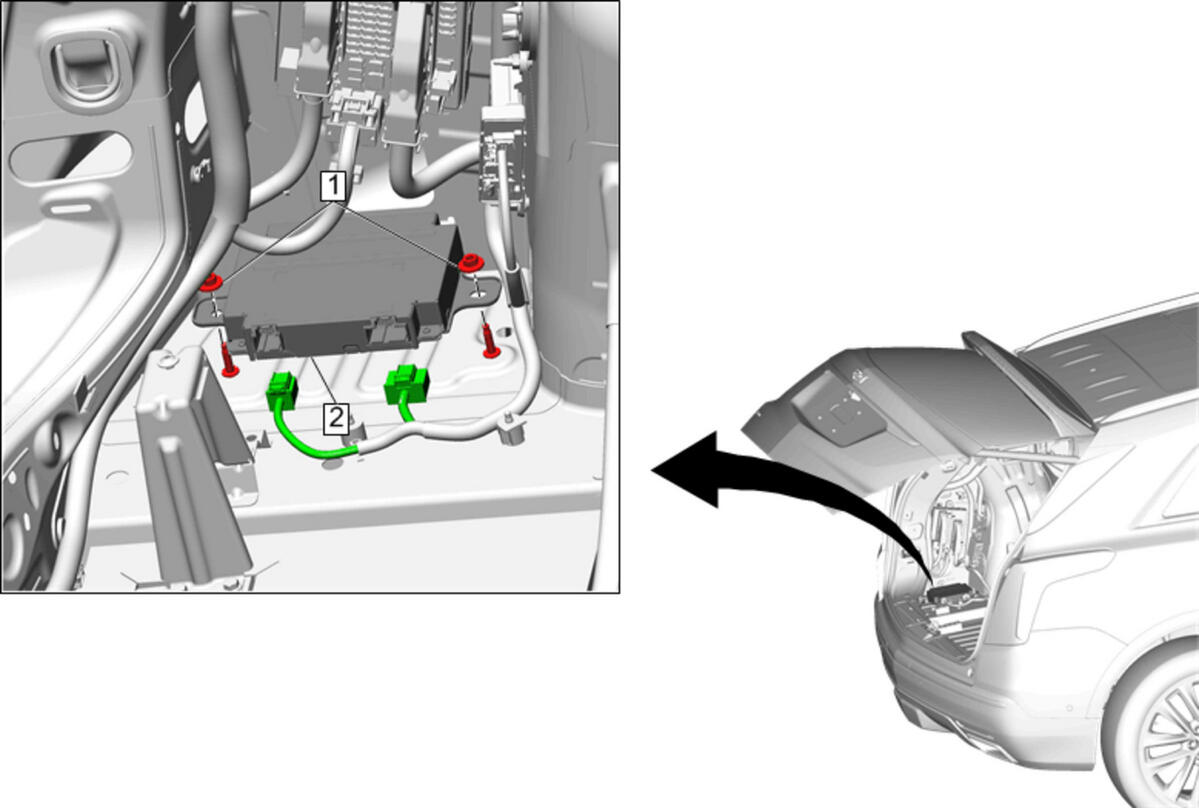

Fig 1: Video Processing Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel Replacement (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)
1	Video Processing Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel Replacement (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)

Video Processing Module Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
