Communication Interface Module Replacement

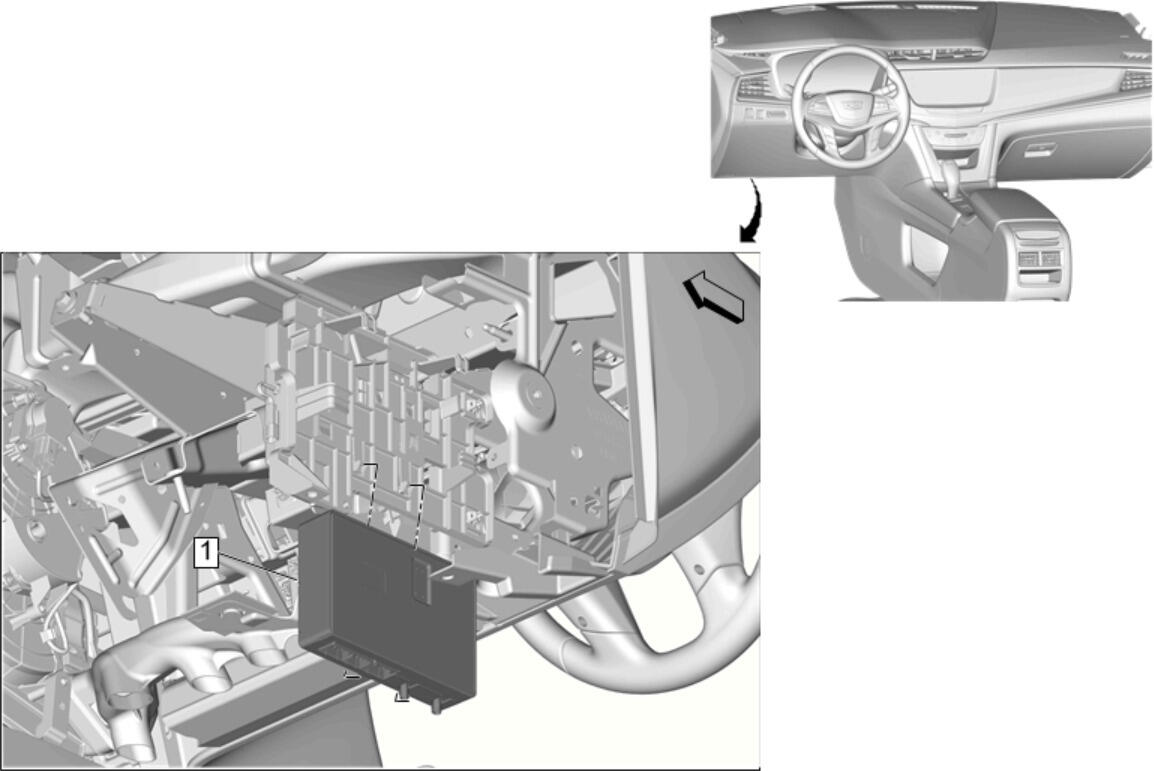

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement
1	Communication Interface Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Communication Interface Module

Procedure
