Keyless Entry Control Module Replacement

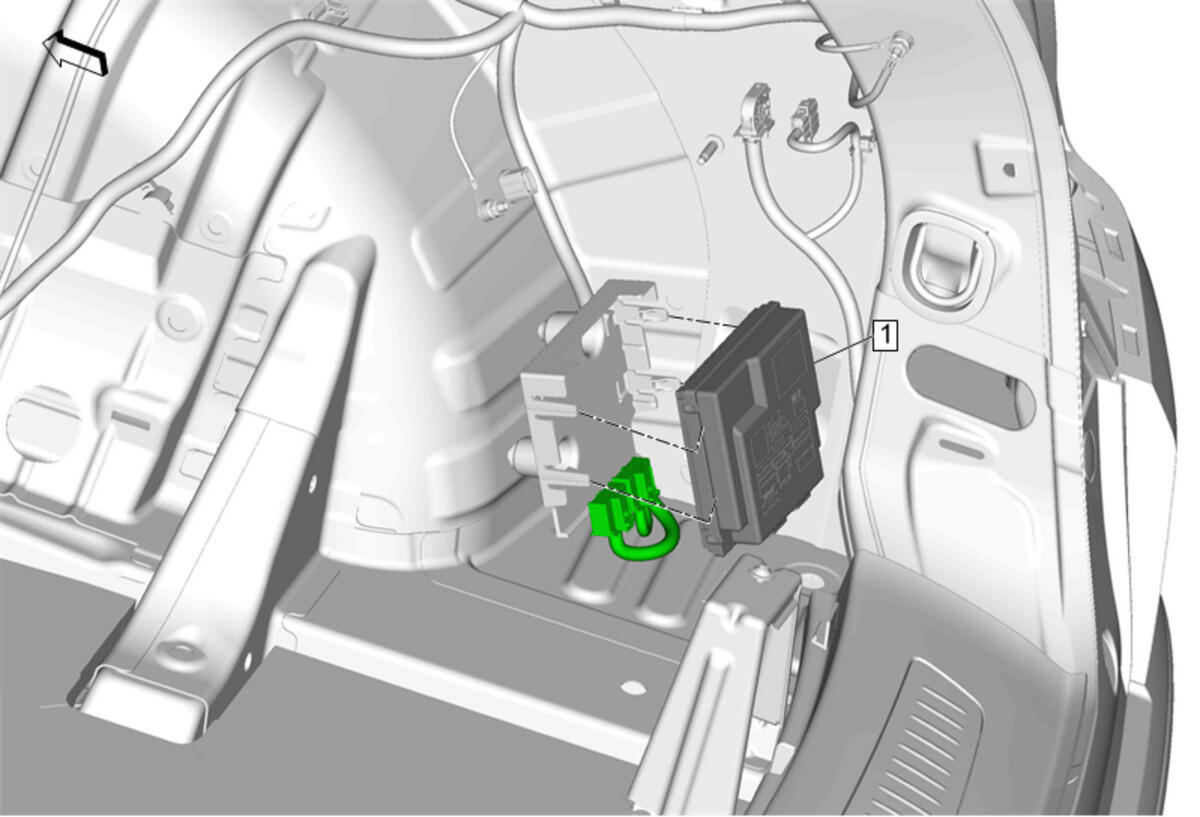

Fig 1: Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel (Right Side). Refer to Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Keyless Entry Control Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel (Right Side). Refer to Quarter Lower Rear Trim Panel Replacement (Right Side)

Keyless Entry Control Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
