Low Frequency Console Antenna Replacement

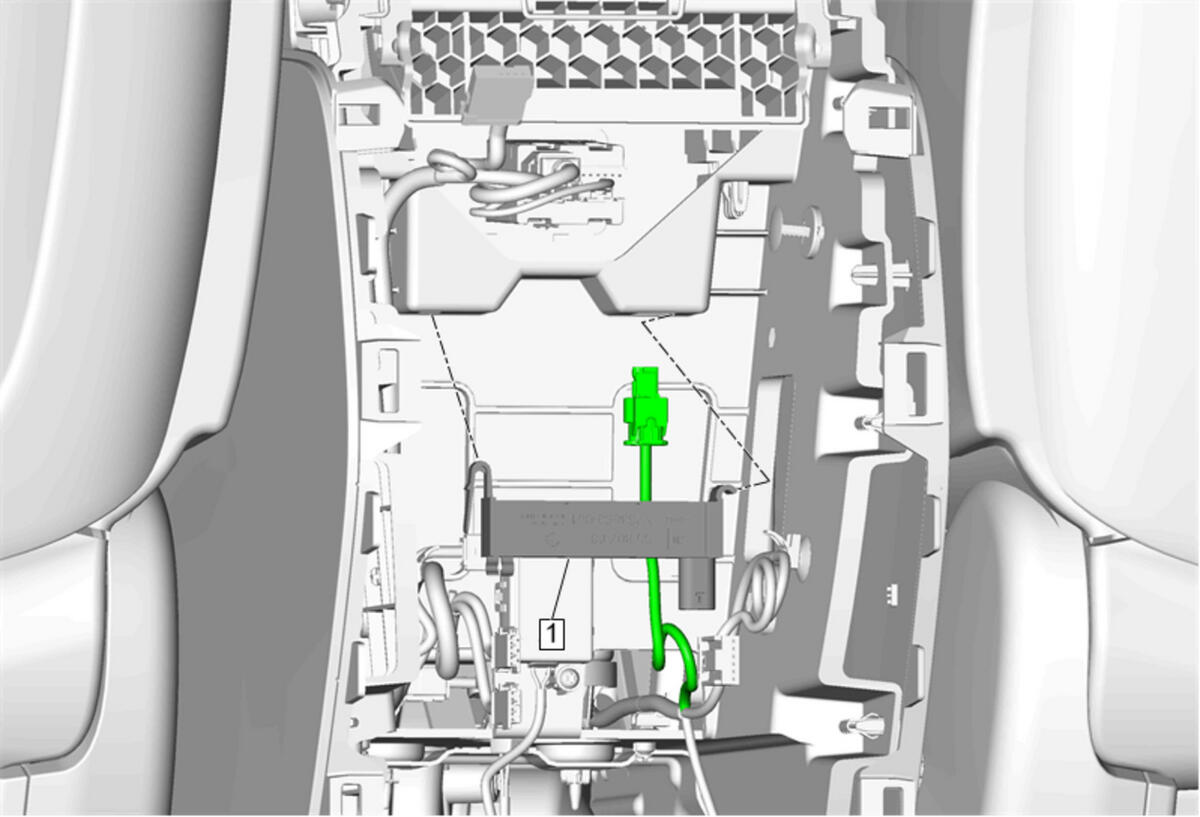

Fig 1: Low Frequency Console Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear air duct - rearward of auxiliary blower. Refer to Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)
1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear air duct - rearward of auxiliary blower. Refer to Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)

Low Frequency Console Antenna

Procedure
