Low Frequency Rear Compartment Antenna Replacement

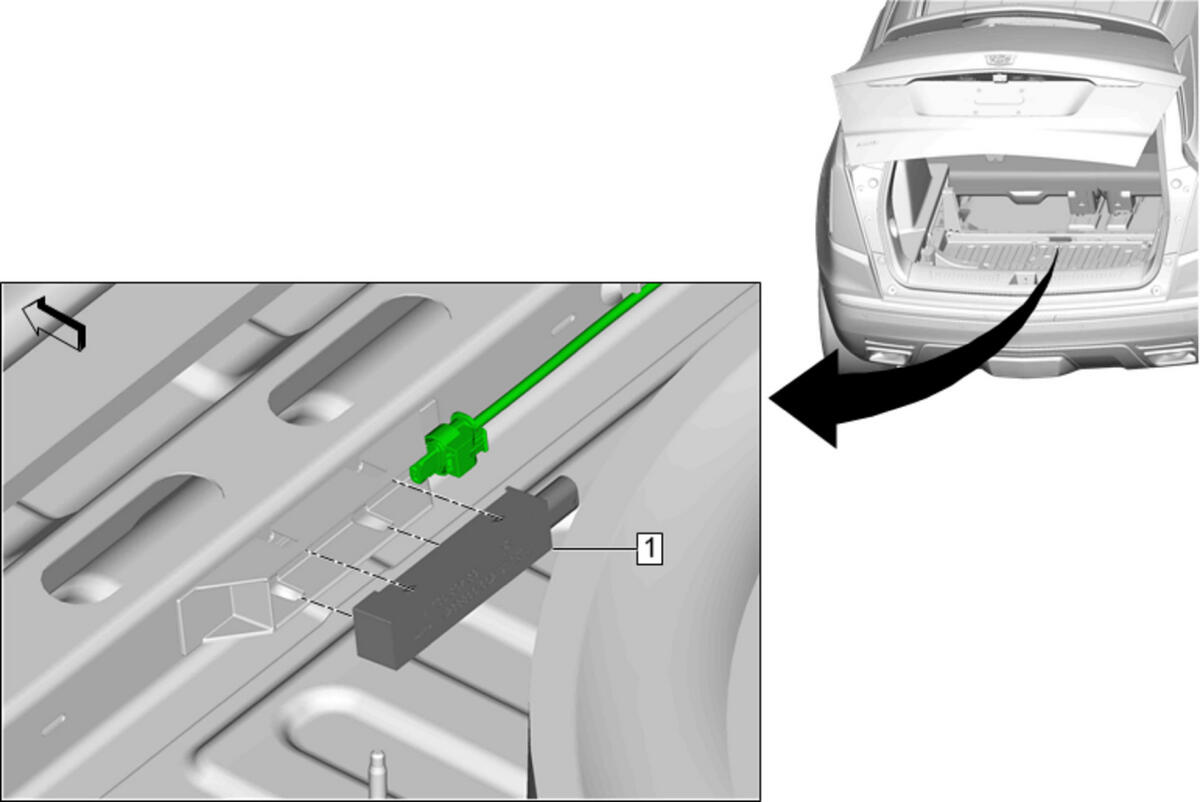

Fig 1: Low Frequency Rear Compartment Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Floor Stowage Compartment Divider. Refer to Rear Compartment Floor Stowage Compartment Divider Replacement (Without KTI)Rear Compartment Floor Stowage Compartment Divider Replacement (With KTI)
1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Low Frequency Rear Compartment Antenna

Procedure
