Remote Control Door Lock Receiver Replacement

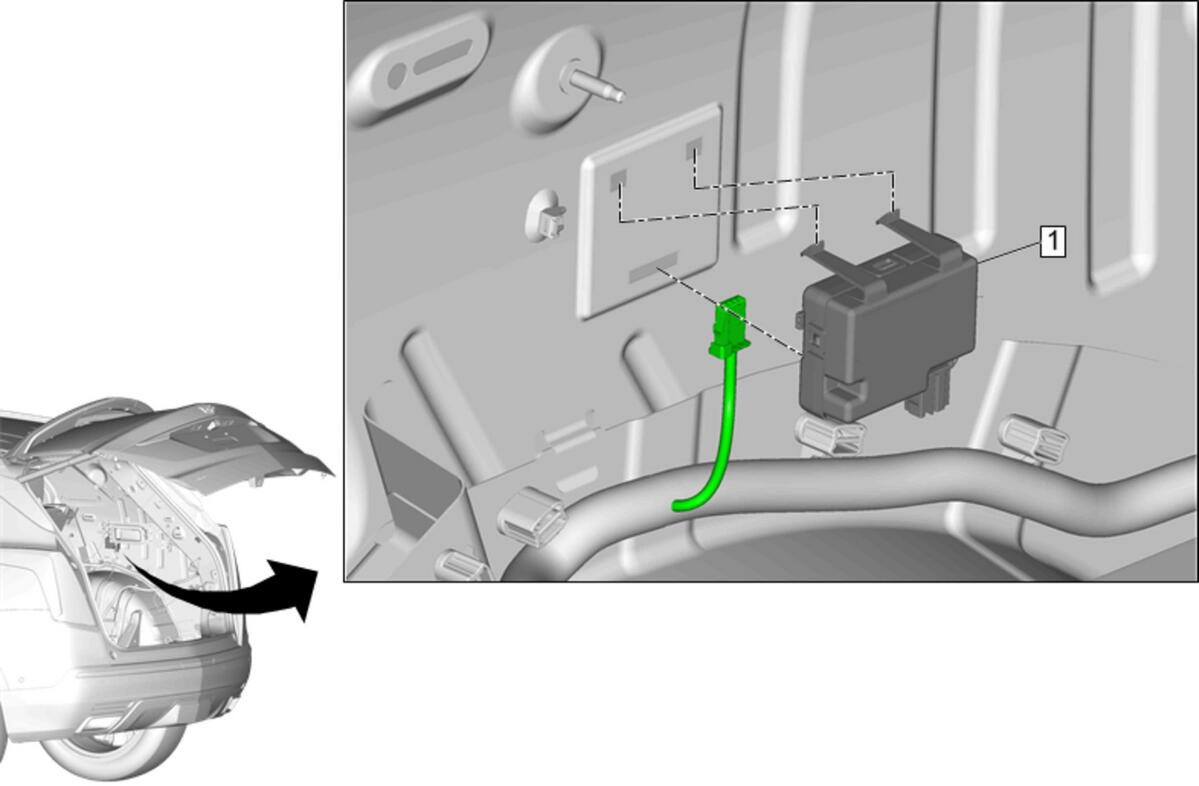

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel (Right Side). Refer to Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel (Right Side). Refer to Quarter Lower Rear Trim Panel Replacement (Right Side)

Remote Control Door Lock Receiver

Procedure
