Theft Deterrent Module Replacement

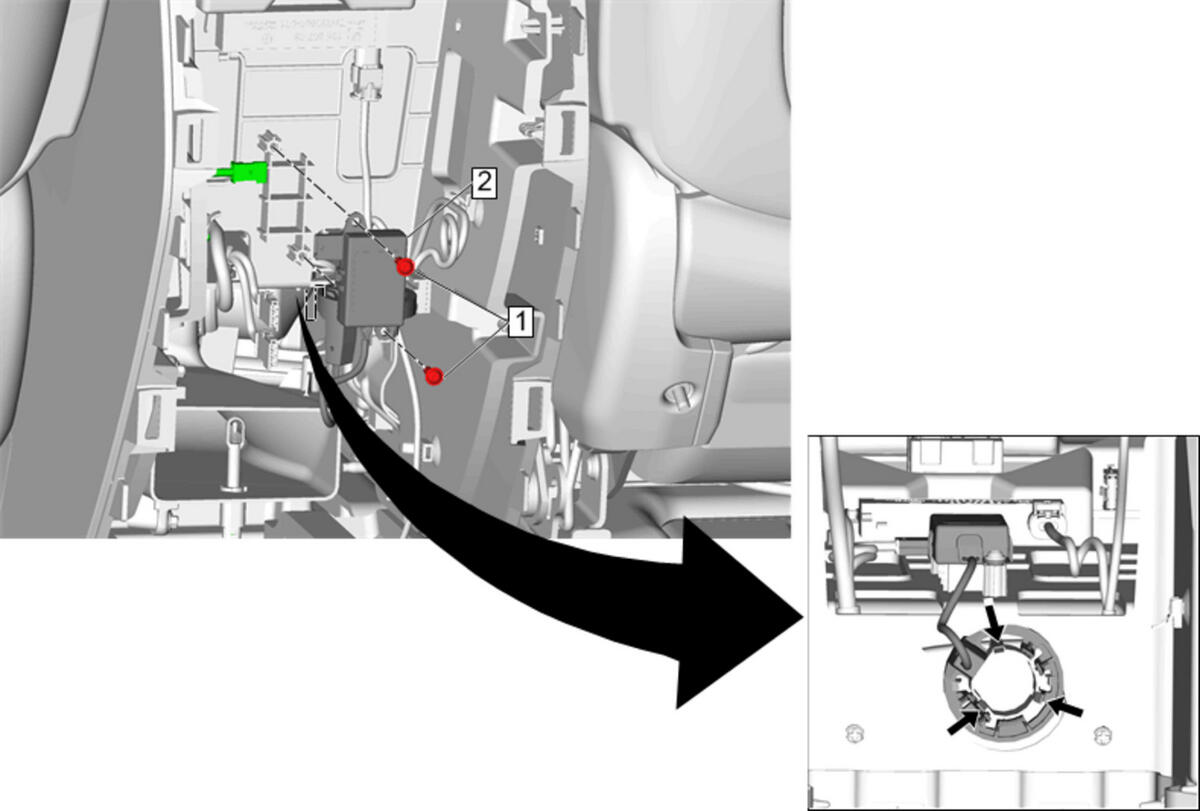

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear air duct replacement - rearward of auxiliary blower. Refer to Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)
1	Theft Deterrent Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 1 N.m (9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear air duct replacement - rearward of auxiliary blower. Refer to Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)

Theft Deterrent Module Bolt (Qty: 2)

CAUTION:

Tighten
1 N.m (9 lb in)

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
