Front Side Door Window Rear Channel Retainer Replacement

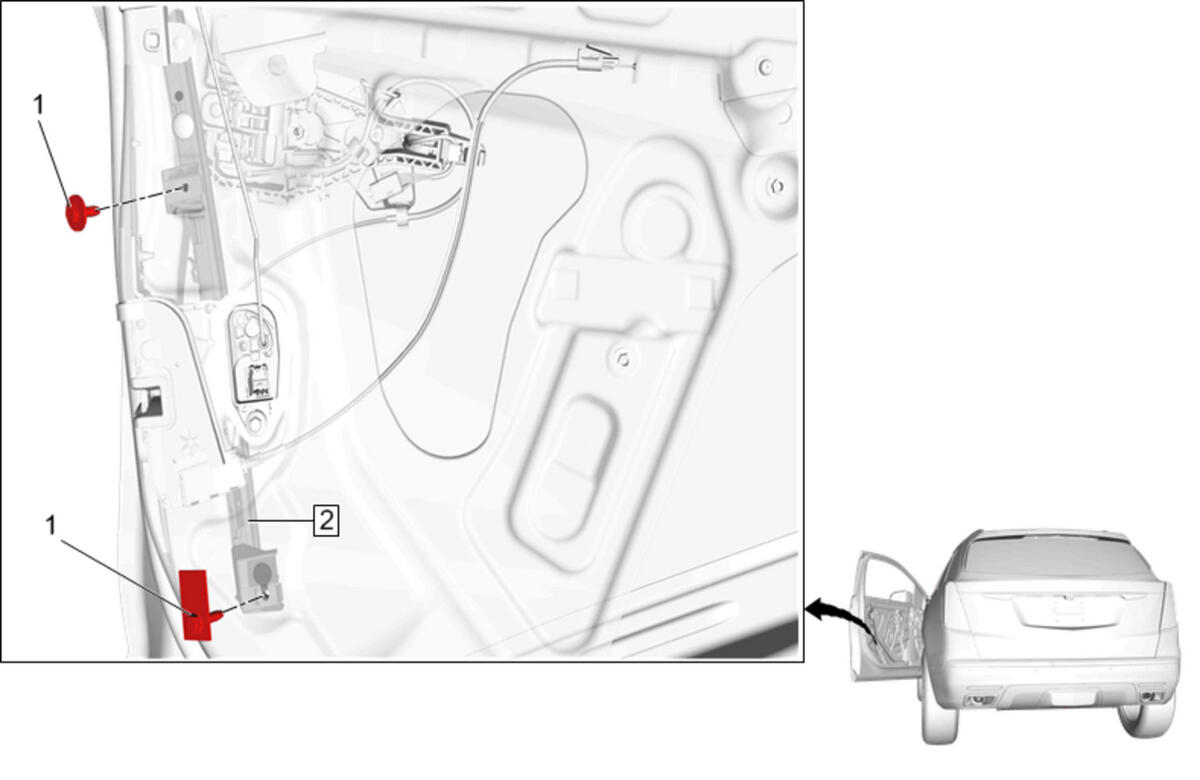

Fig 1: Front Side Door Window Rear Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Place the front side door window in the full up position. Front Side Door Water Deflector Replacement
1	Front Side Door Window Channel Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Window Rear Channel Retainer Procedure Transfer components as necessary.
