Front Side Door Window Regulator Motor Replacement

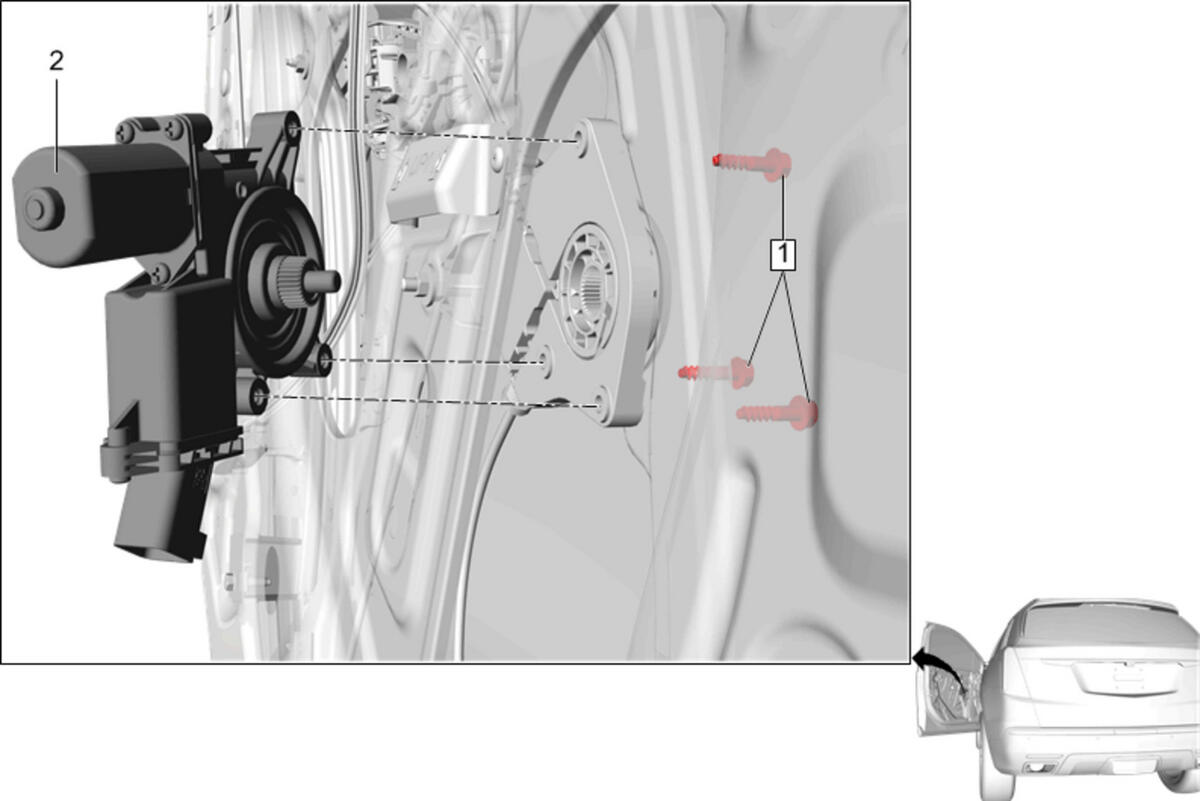

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Front Side Door Water Deflector Replacement Place the front side door window in the full up position. Use masking tape to hold the window to the door frame in the full up position.
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Motor Procedure Disconnect the electrical connections. Inspect the window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedure

Front Side Door Water Deflector Replacement
Place the front side door window in the full up position.
Use masking tape to hold the window to the door frame in the full up position.

Front Side Door Window Regulator Motor Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator Motor

Procedure

Disconnect the electrical connections.
Inspect the window for proper operation before installing the door trim.
