Removal Procedure

    NOTE:

    Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

  1. Open the hood.
    2. Fig 1: Windshield Wiper Arm
    GM4281780Courtesy of GENERAL MOTORS COMPANY
  2. Remove Windshield Wiper Arm (3)Windshield Wiper Arm Replacement
    3. Fig 2: Air Inlet Grille Panel
    GM4281893Courtesy of GENERAL MOTORS COMPANY
  3. Remove Air Inlet Grille Panel (2)Air Inlet Grille Panel Replacement
    4. Fig 3: Inside Rearview Mirror
    GM4292136Courtesy of GENERAL MOTORS COMPANY
  4. Remove Inside Rearview Mirror (2)Inside Rearview Mirror Replacement
    5. WARNING:

    If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.

  5. Cover to protect the following parts from broken glass:
    • Upper Dash Pad
    • The defroster outlets and A/C outlets
    • The seats and carpeting
  6. Remove the lower windshield supports from the cowl panel, if equipped.
    7. Fig 4: Using Utility Knife To Remove Reveal Molding
    GM379905Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

  7. Using the appropriate tool, carefully cut around the lace (1), start in the center working from side to side of the window to access the urethane adhesive bead, if equipped.
    8. Fig 5: Separating Urethane Adhesive From Window
    GM71179Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the cutting edge of the tool against the window.

  8. This will allow the urethane adhesive to be separated from the windshield.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • BO-24402-A  Glass Sealant Remover (Cold Knife).
    • BO-39032  Stationary Glass Removal Tool, or equivalent in order to remove the window.

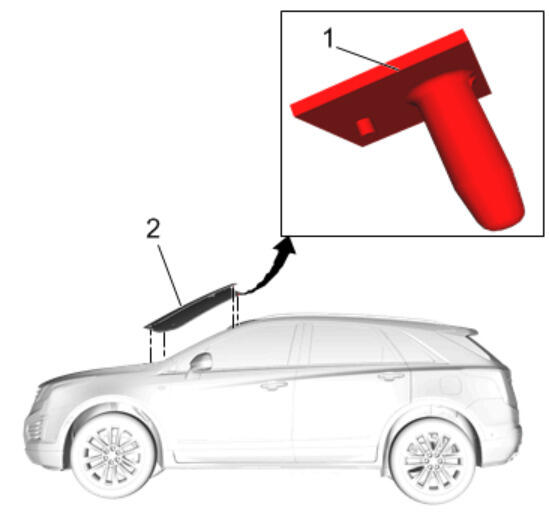

    9. Fig 6: Window Locating Pins
    GM4282220Courtesy of GENERAL MOTORS COMPANY
  9. With the aid of an assistant, remove the windshield (1) and locating pin (2) from the vehicle.
  10. Transfer components as necessary.
