Installation Procedure

    Fig 1: Wheel Speed Sensor
    GM4260246Courtesy of GENERAL MOTORS COMPANY
  1. Install Wheel Speed Sensor (1)
    2. Fig 2: Wheel Speed Sensor Bolt
    GM4260243Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Install Wheel Speed Sensor Bolt (1) and tighten 9 N.m (80 lb in)

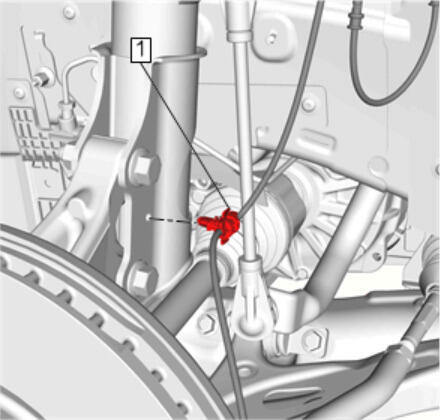

    3. Fig 3: Retainer
    GM4260241Courtesy of GENERAL MOTORS COMPANY
  3. Secure Retainer (1) @Strut Assembly

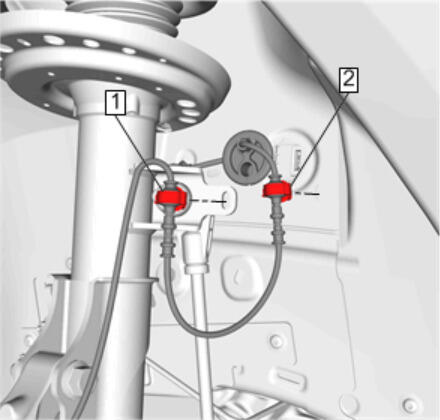

    4. Fig 4: Retainers
    GM4260240Courtesy of GENERAL MOTORS COMPANY
  4. Secure Retainer (1) @Strut Assembly
  5. Secure Retainer (2) @ Wheelhouse

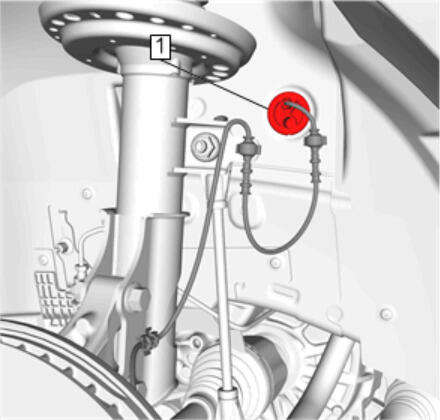

    6. Fig 5: Wheel Speed Sensor Harness Pass Through Grommet
    GM4260238Courtesy of GENERAL MOTORS COMPANY
  6. Secure Wheel Speed Sensor Harness Pass Through Grommet (1)
  7. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Lower the vehicle.

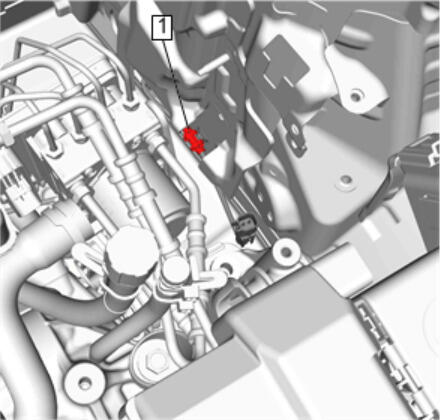

    9. Fig 6: Retainer
    GM4260235Courtesy of GENERAL MOTORS COMPANY
  9. Secure Retainer (1) @Strut Tower

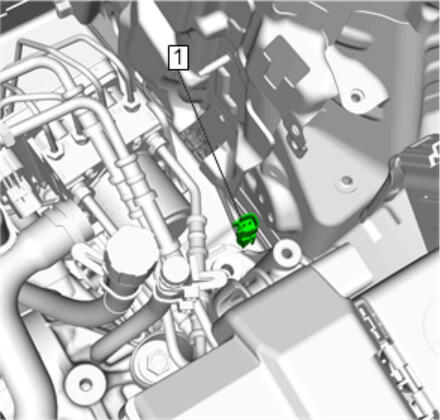

    10. Fig 7: Wheel Speed Sensor Electrical Connector
    GM4260232Courtesy of GENERAL MOTORS COMPANY
  10. Connect Wheel Speed Sensor Electrical Connector (1)
  11. Reposition and install the radiator surge tank.Radiator Surge Tank Replacement (LGX With V08)Radiator Surge Tank Replacement (LGX without V08)
  12. Verify the repair is complete. Diagnostic Repair Verification
