Installation Procedure

    Fig 1: Wheel Speed Sensor
    GM4353813Courtesy of GENERAL MOTORS COMPANY
  1. Install Wheel Speed Sensor (1)
    2. Fig 2: Wheel Speed Sensor Bolt
    GM4353811Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Wheel Speed Sensor Bolt (1) and tighten 9 N.m (80 lb in)

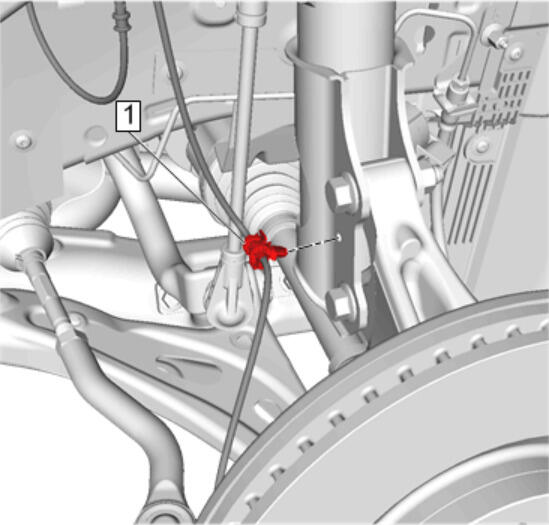

    3. Fig 3: Retainer
    GM4353810Courtesy of GENERAL MOTORS COMPANY
  3. Secure Retainer (1) @Strut Assembly

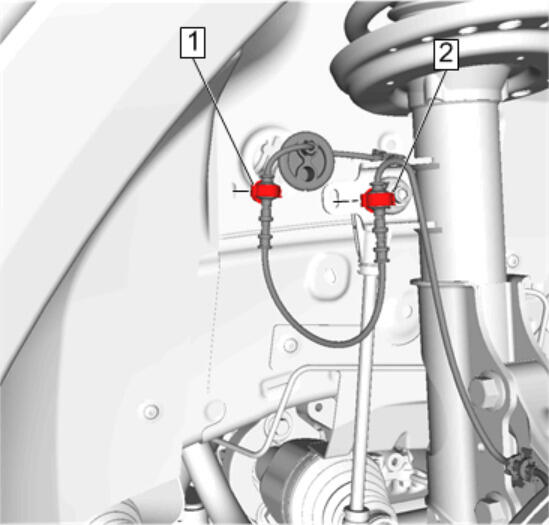

    4. Fig 4: Retainers
    GM4353809Courtesy of GENERAL MOTORS COMPANY
  4. Secure Retainer (1) @Wheelhouse
  5. Secure Retainer (2) @ Strut Assembly

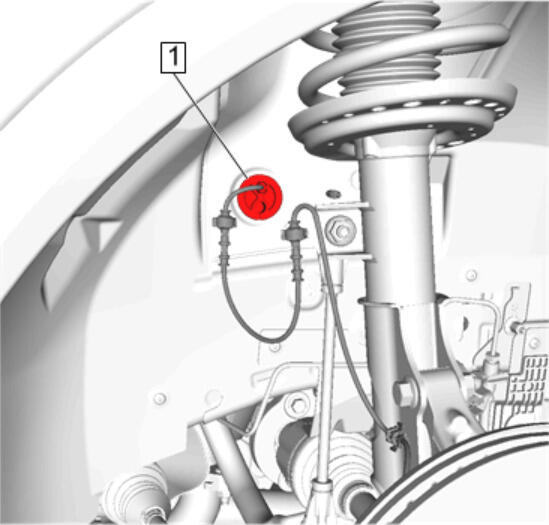

    6. Fig 5: Wheel Speed Sensor Harness Pass Through Grommet
    GM4353808Courtesy of GENERAL MOTORS COMPANY
  6. Secure Wheel Speed Sensor Harness Pass Through Grommet (1)
  7. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Lower the vehicle.

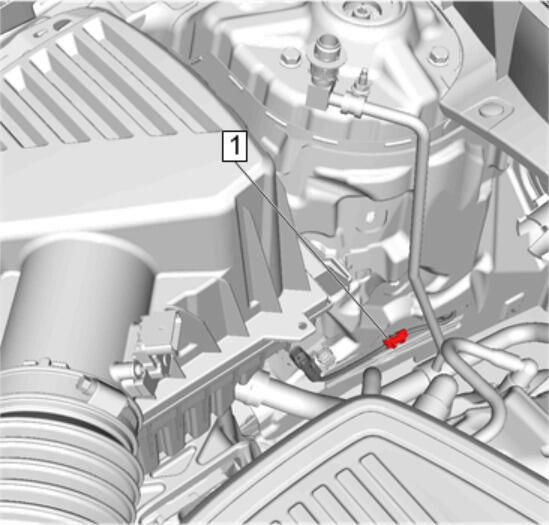

    9. Fig 6: Retainer
    GM4353805Courtesy of GENERAL MOTORS COMPANY
  9. Secure Retainer (1) @Strut Tower

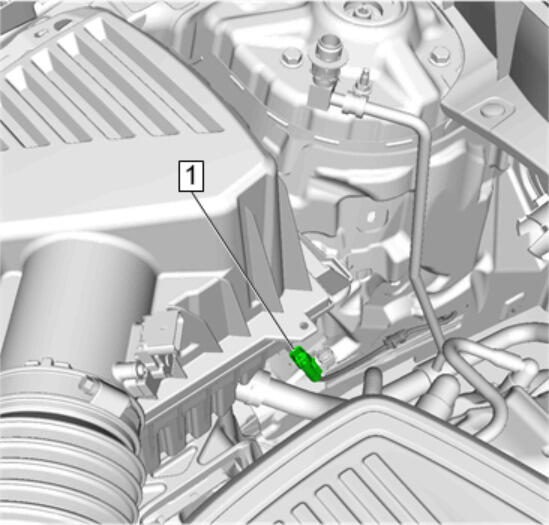

    10. Fig 7: Wheel Speed Sensor Electrical Connector
    GM4353799Courtesy of GENERAL MOTORS COMPANY
  10. Connect Wheel Speed Sensor Electrical Connector (1)
  11. Verify the repair is complete. Diagnostic Repair Verification
