Vehicle Stability Control System Switch Replacement

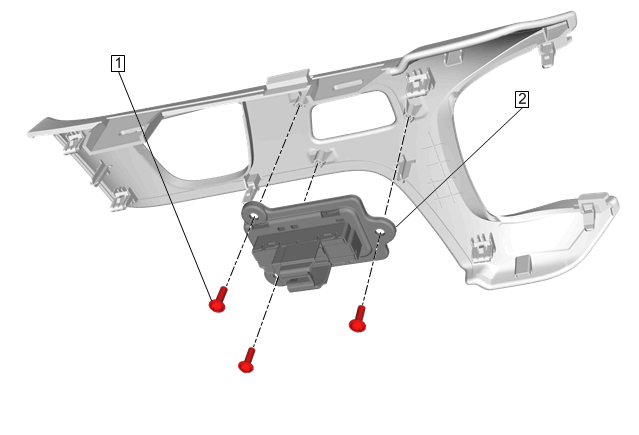

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Front Floor Console Trim Plate Replacement
1	Vehicle Stability Control System SwitchFastener (Qty: 3) CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Vehicle Stability Control System Switch
