Under Left Side of Instrument Panel Components

Under Left Side of Instrument Panel Components

Items
1. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor

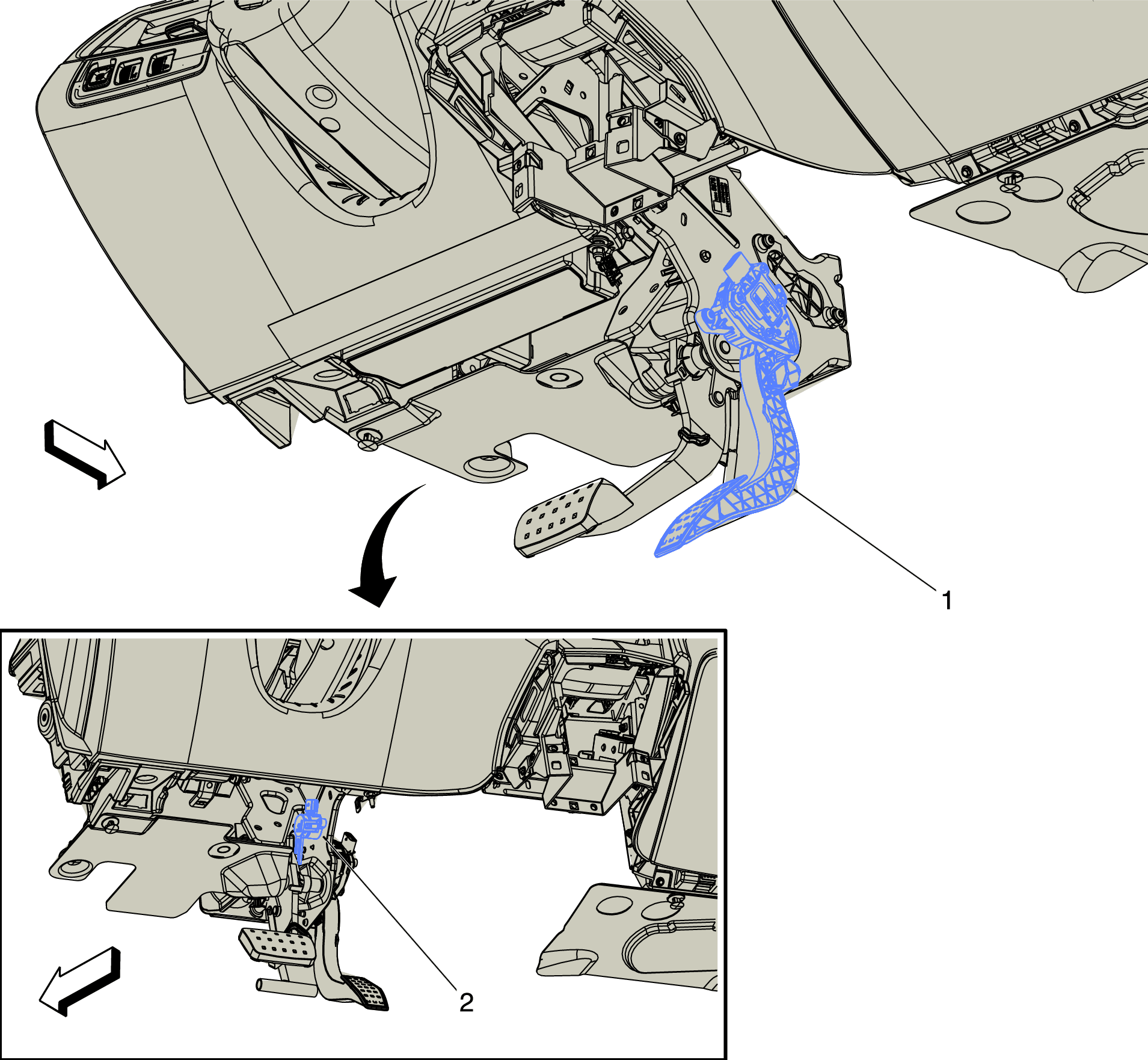

Fig 1: Under Left Side of Instrument Panel Components
GM4279011Courtesy of GENERAL MOTORS COMPANY
