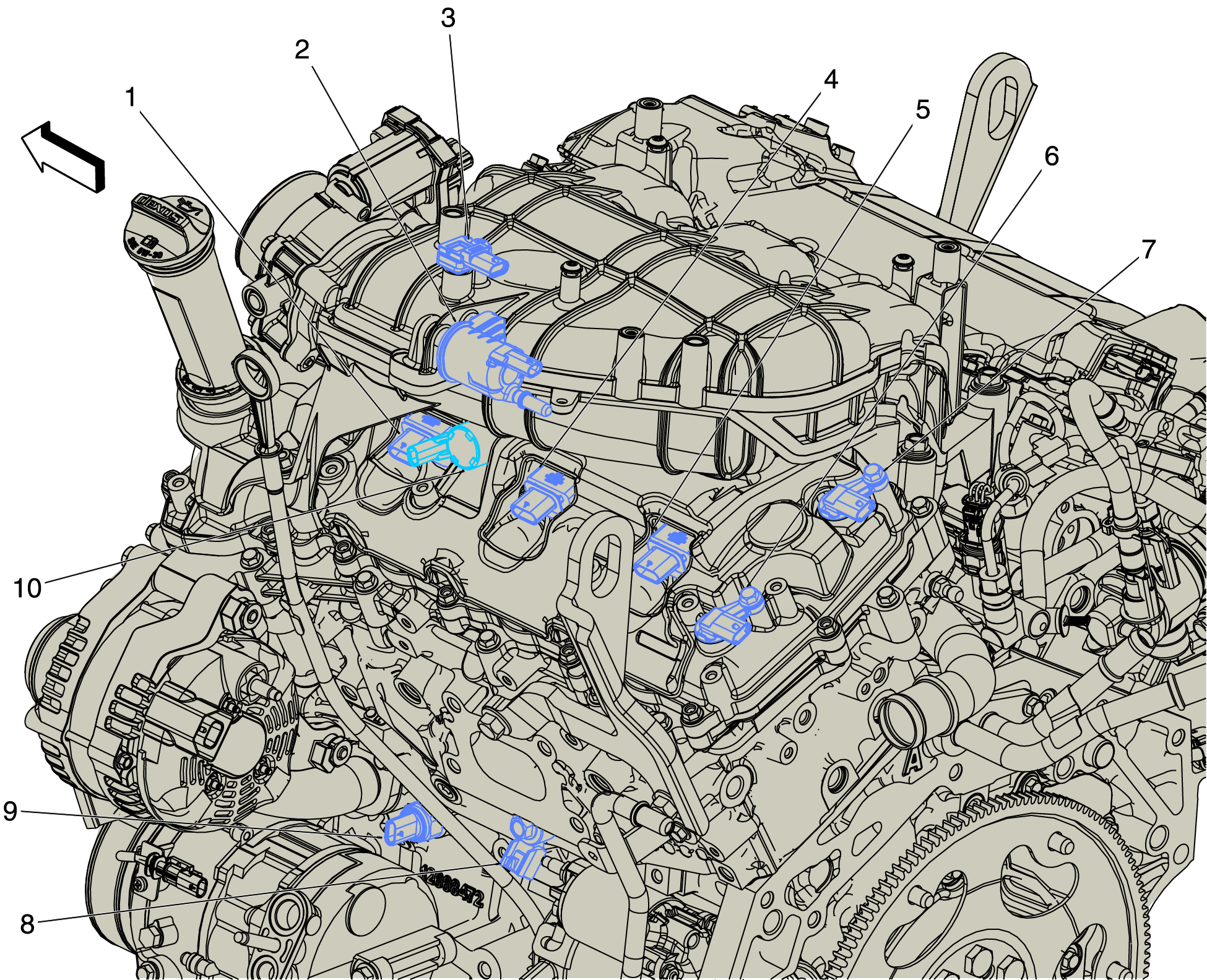

Left Front of Engine Components
Left Front of Engine Components
| Items |
|---|
| 1. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 5. T8F Ignition Coil 6 T8F Ignition Coil 6 |
| 6. B23C Camshaft Position Sensor - Bank 2 Exhaust B23C Camshaft Position Sensor - Bank 2 Exhaust |
| 7. B23D Camshaft Position Sensor - Bank 2 Intake B23D Camshaft Position Sensor - Bank 2 Intake |
| 8. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 9. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 10. Q83B Valve Lifter Oil Solenoid Valve - Bank 2 Q83B Valve Lifter Oil Solenoid Valve - Bank 2 |
