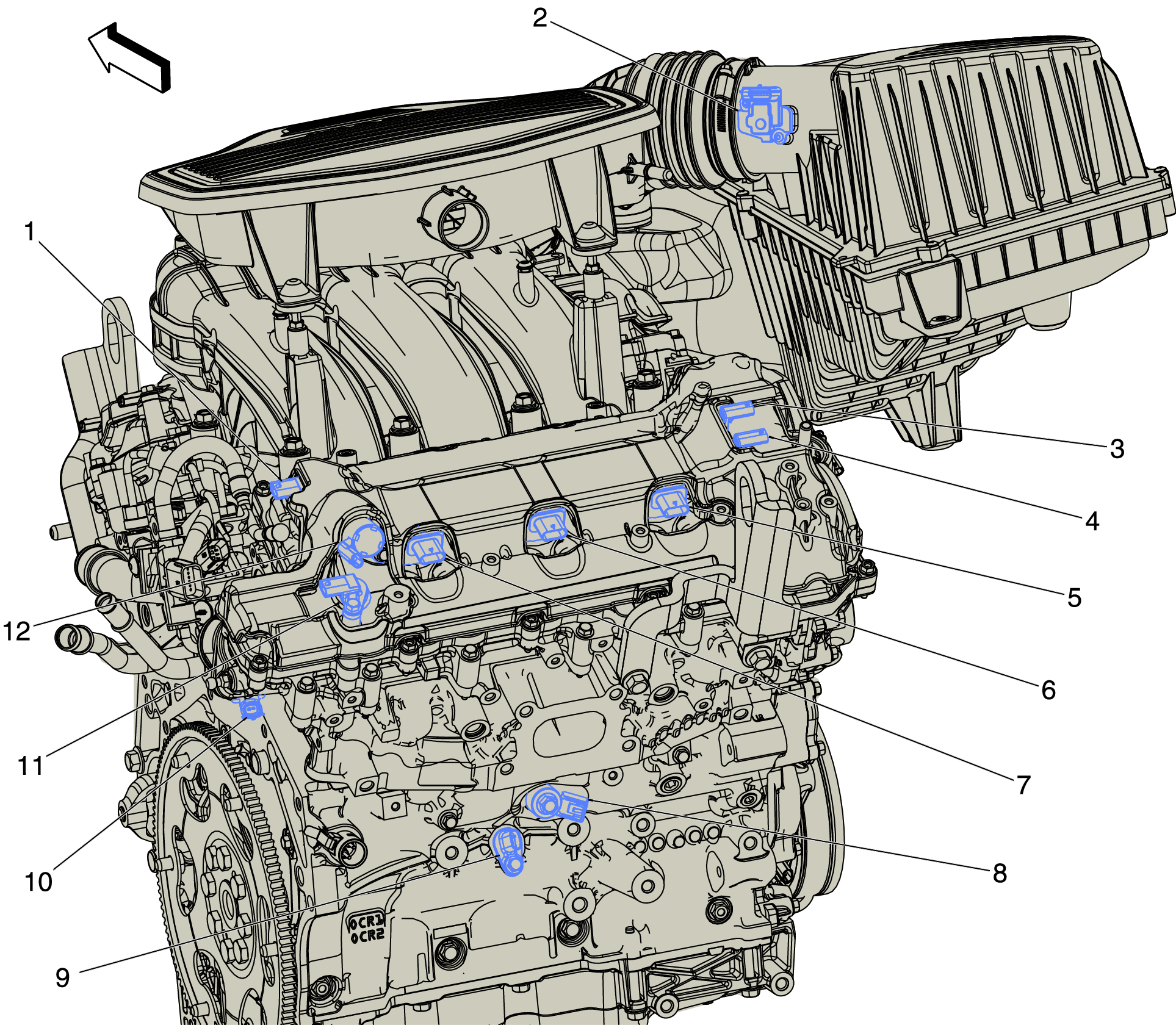

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1. B23B Camshaft Position Sensor - Bank 1 Intake B23B Camshaft Position Sensor - Bank 1 Intake |
| 2. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 3. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake |
| 4. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust |
| 5. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 6. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 7. T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 8. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 9. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 10. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 11. B23A Camshaft Position Sensor - Bank 1 Exhaust B23A Camshaft Position Sensor - Bank 1 Exhaust |
| 12. Q83A Valve Lifter Oil Solenoid Valve - Bank 1 Q83A Valve Lifter Oil Solenoid Valve - Bank 1 |
