Forward Collision Alert Display Replacement

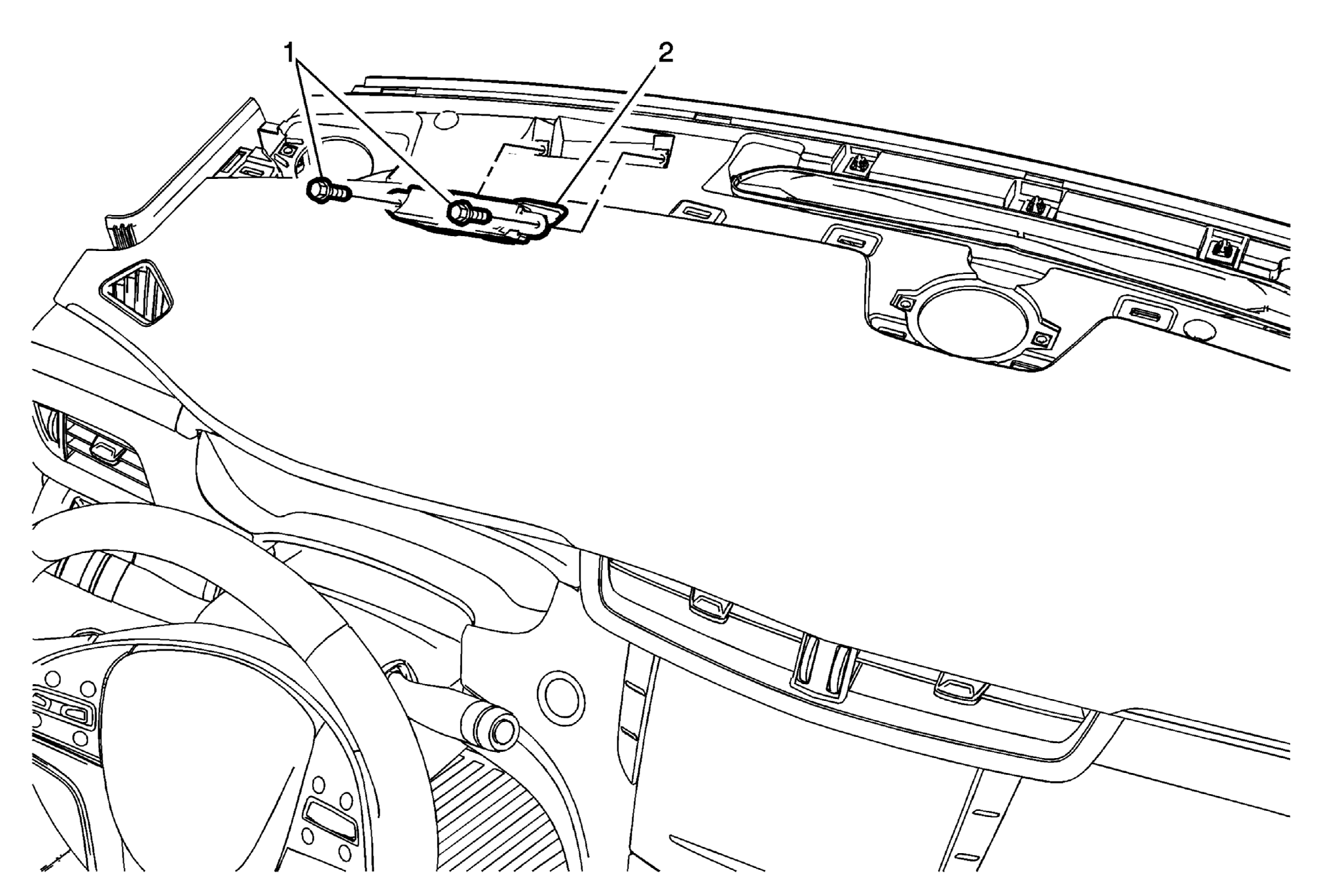

Fig 1: Forward Collision Alert Display
GM2756772Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement .
1 Forward Collision Alert Display (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Forward Collision Alert Display
Procedure
Disconnect the electrical connector.
