Object Detection Sensor Replacement (Front)

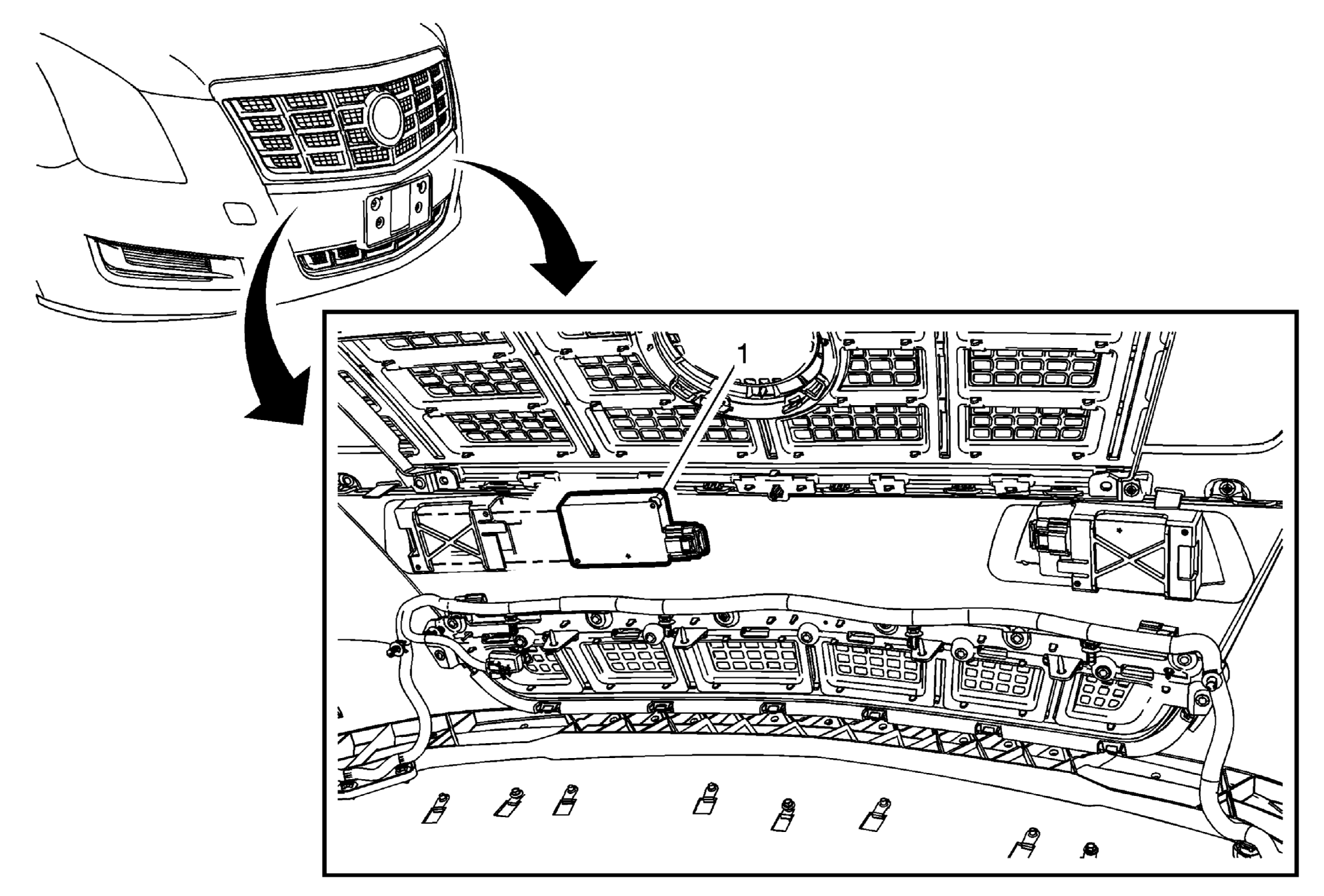

Fig 1: Object Detection Sensor (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper energy absorber. Refer to Front Bumper Energy Absorber Replacement .
1	Object Detection Sensor Procedure Disconnect the electrical connector. Slide module from bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the front bumper energy absorber. Refer to Front Bumper Energy Absorber Replacement .

Object Detection Sensor

Procedure
