Object Detection Sensor Replacement (Rear)

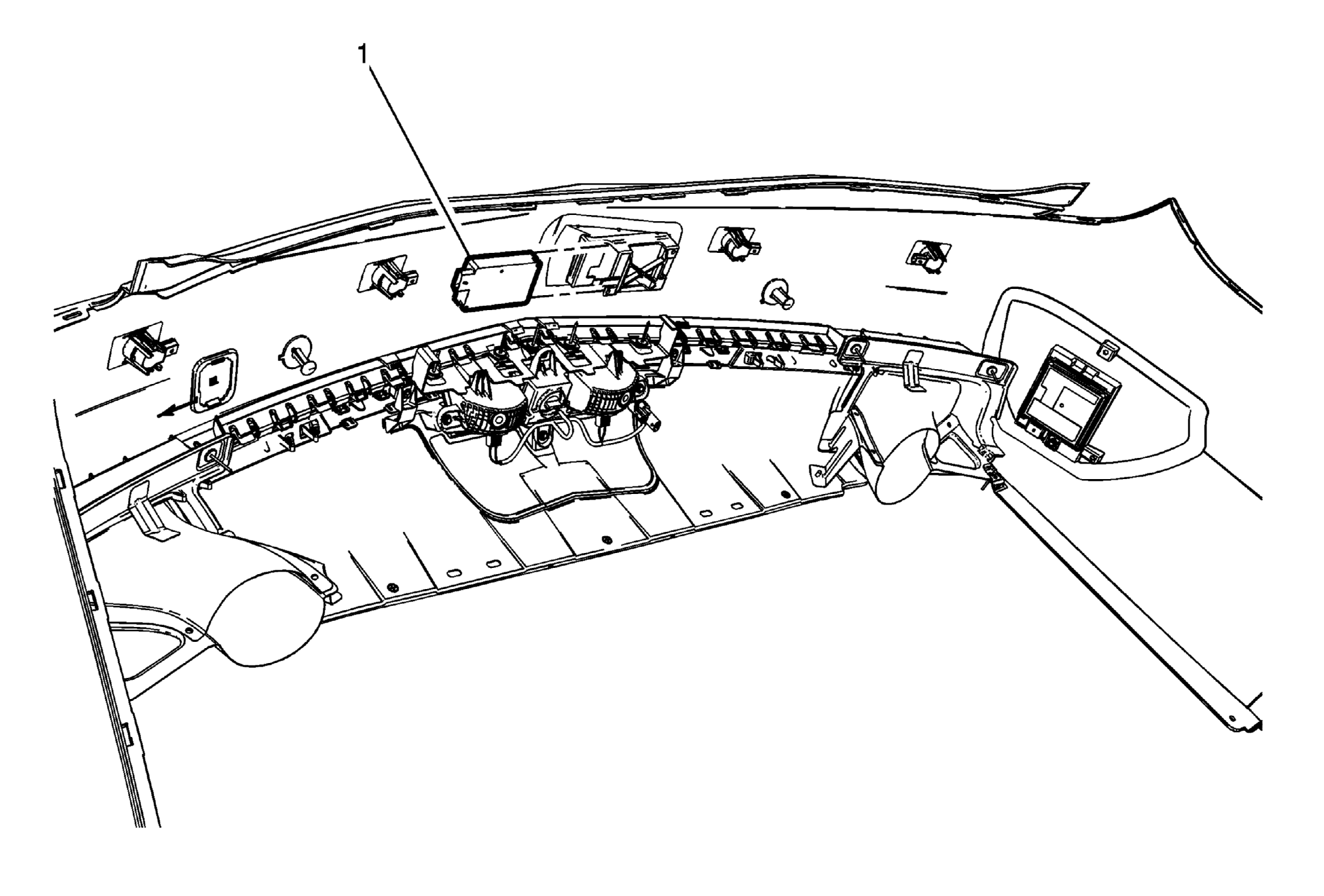

Fig 1: Object Detection Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper energy absorber. Refer to Rear Bumper Energy Absorber Replacement .
1	Object Detection Sensor Procedure Disconnect the electrical connector. Slide module from bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear bumper energy absorber. Refer to Rear Bumper Energy Absorber Replacement .

Object Detection Sensor

Procedure
