Parking Assist Control Module Replacement

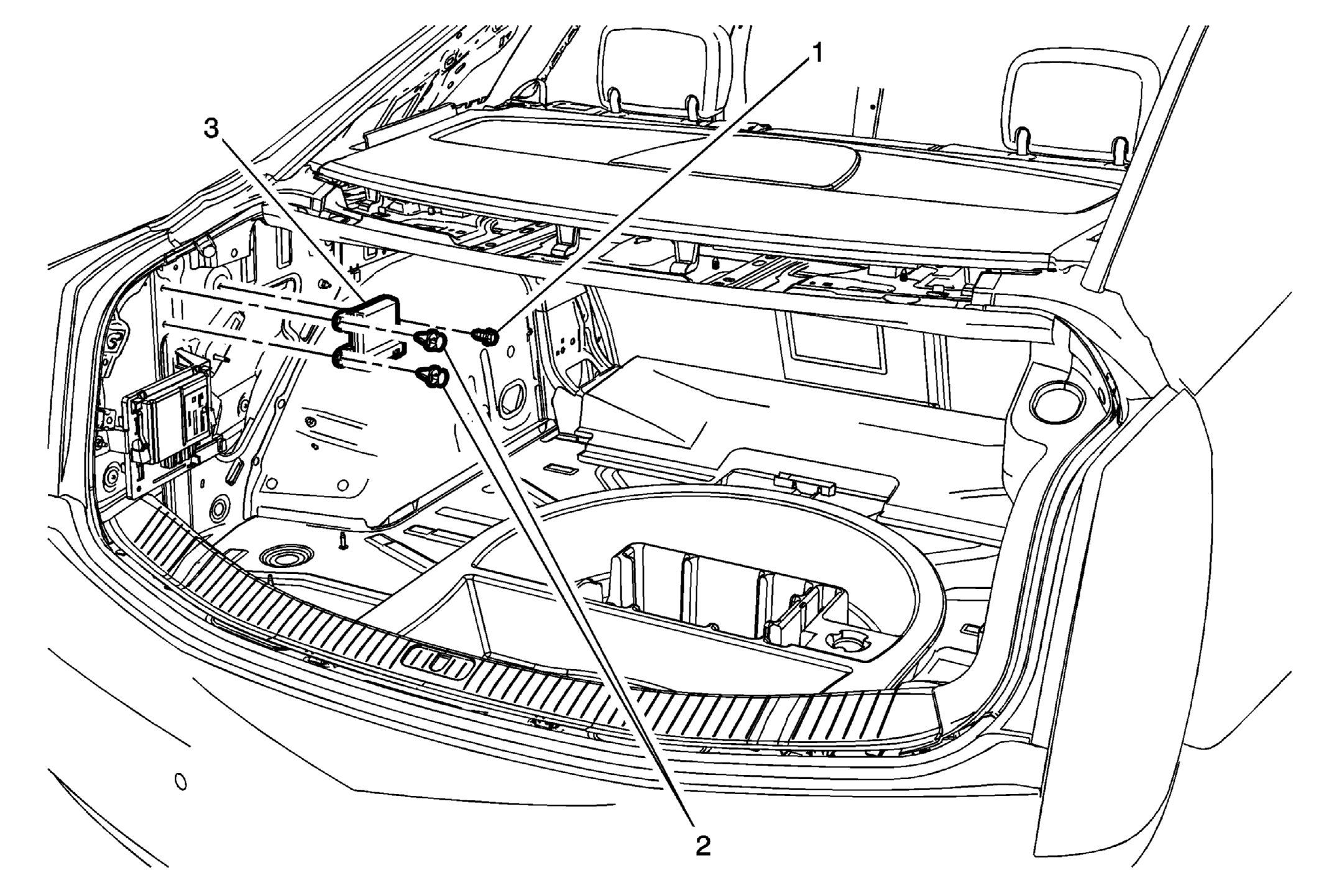

Fig 1: Rear Object Alarm Control Module & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side .
1	Rear Object Alarm Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Rear Object Alarm Control Module Retainer (Qty: 2)
3	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .
