Active Safety Control Module Replacement

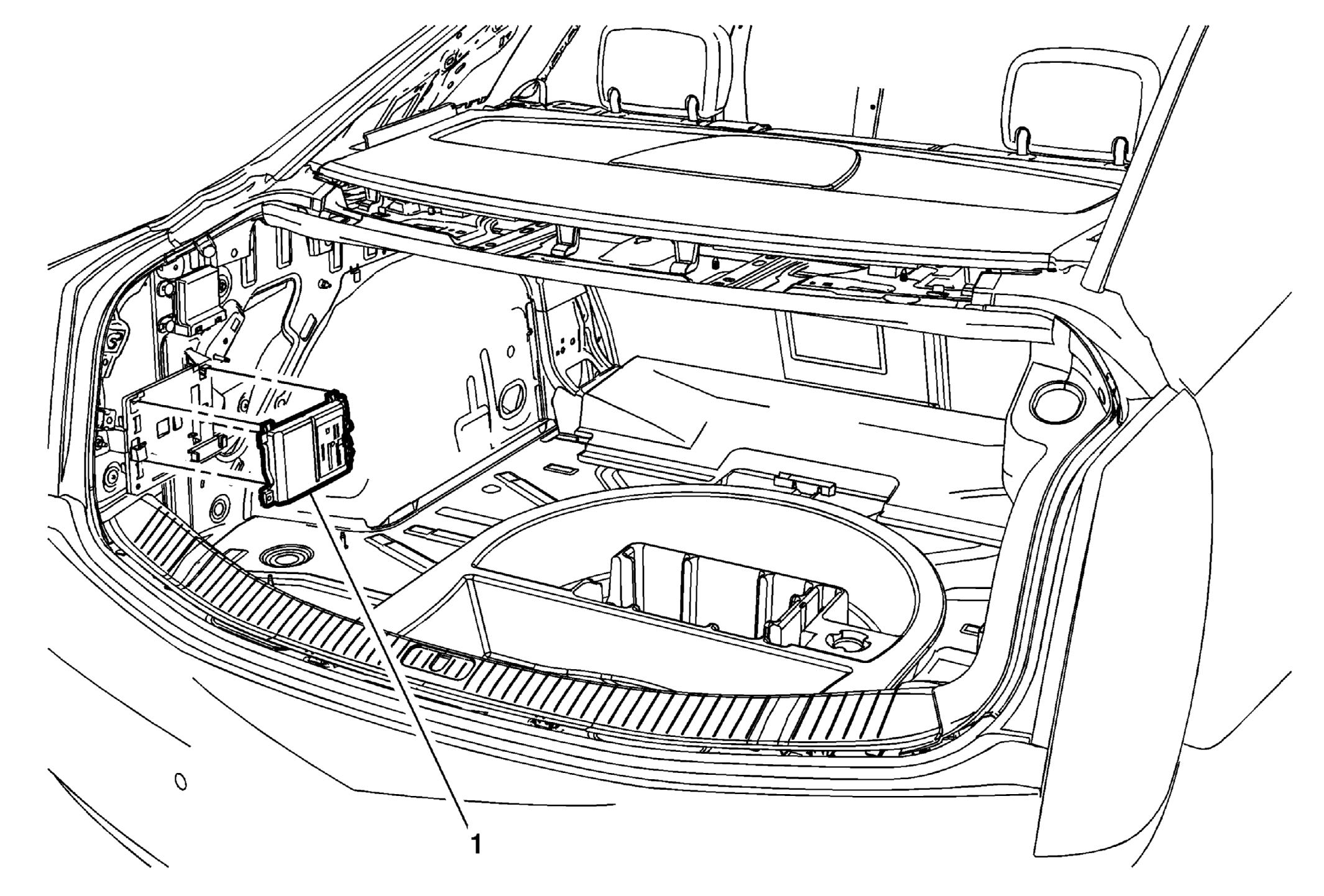

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side .
1	Active Safety Control Module Procedure Release the locking retainer from the active safety control module bracket. Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side .

Active Safety Control Module

Procedure
