Remote Control Door Lock Receiver Replacement

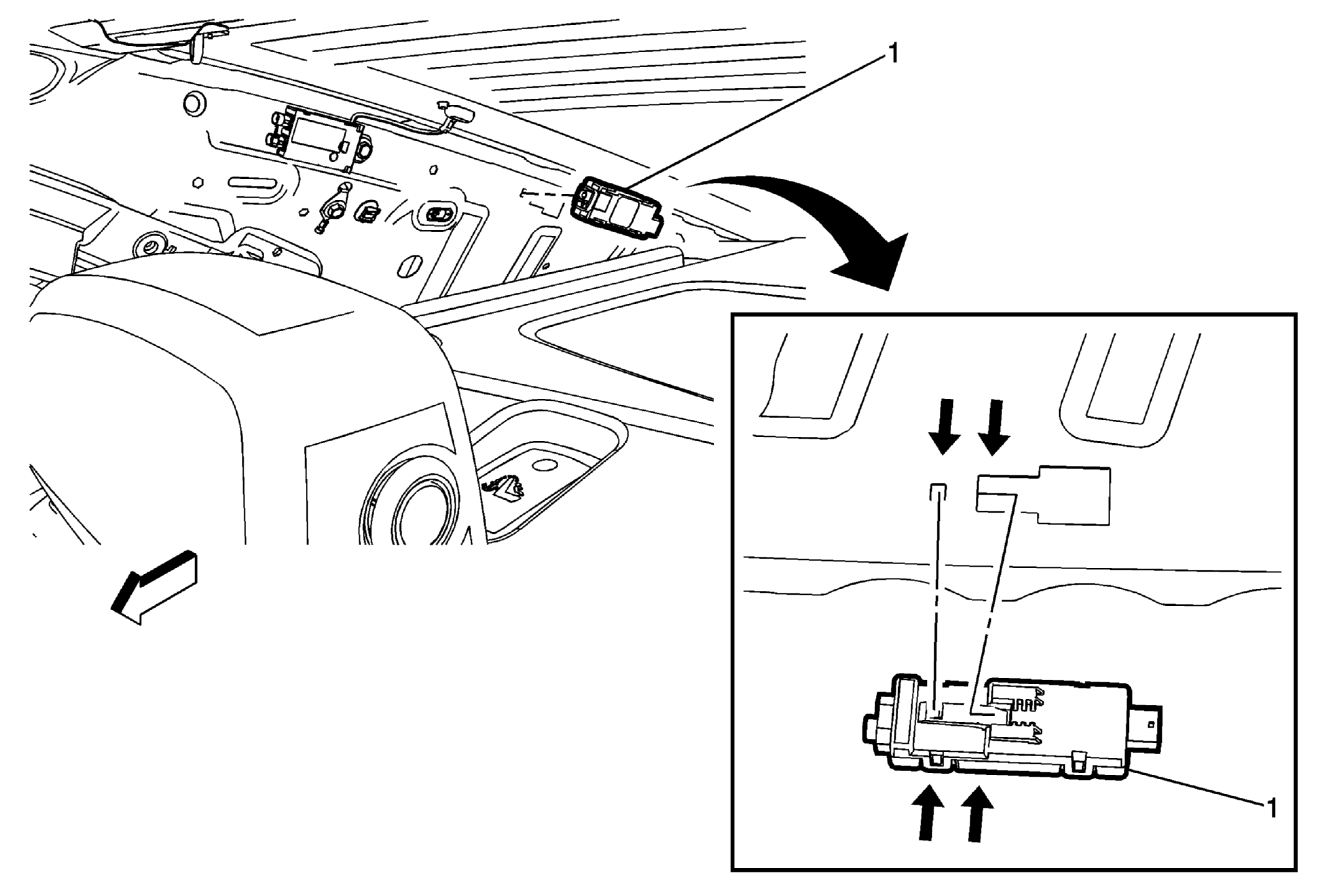

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the antenna cable connector. Disconnect the electrical connector. Slide the receiver rearward to release.

Callout

Component Name

Preliminary Procedure
Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .

Remote Control Door Lock Receiver

Procedure
