Theft Deterrent Module Replacement

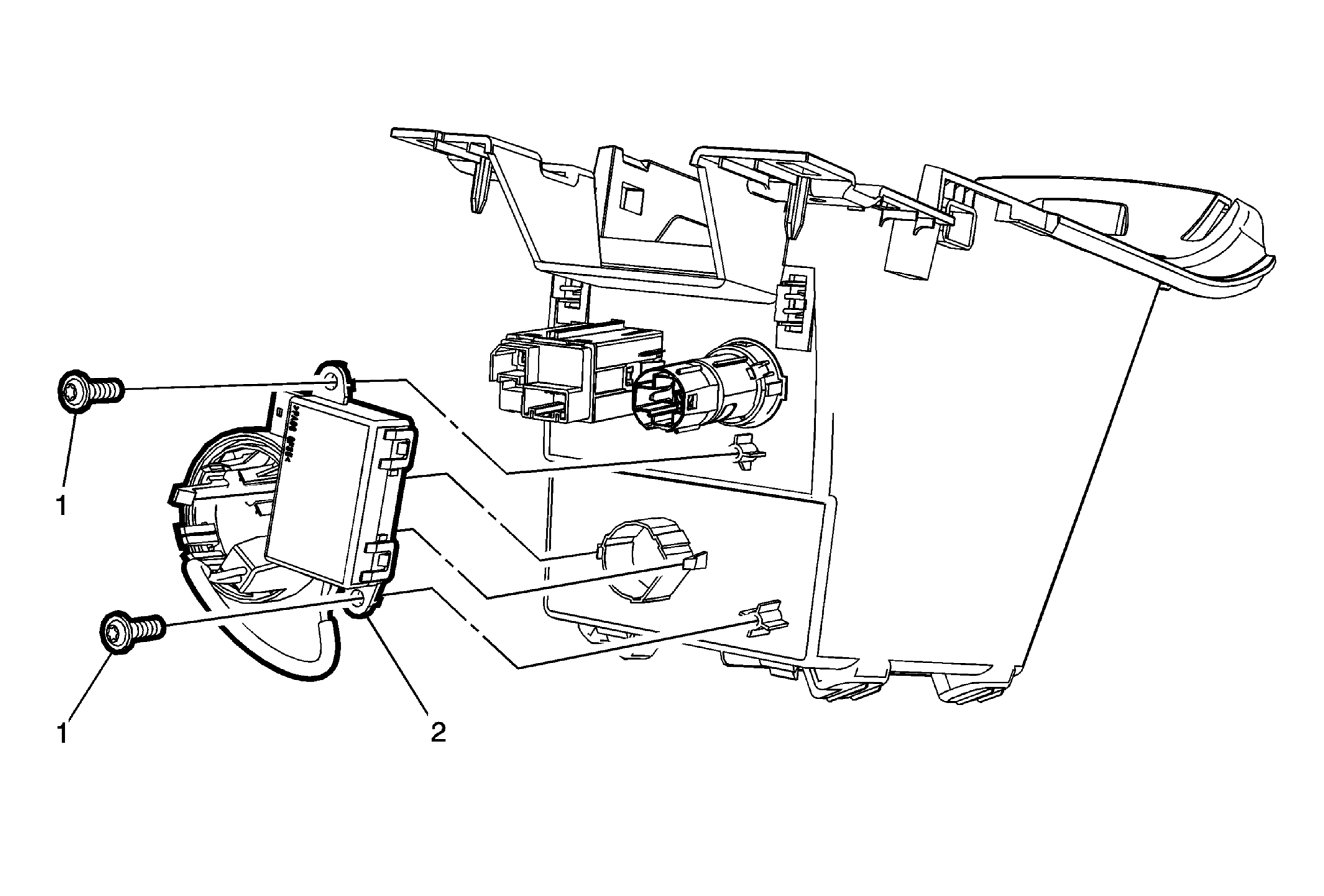

Fig 1: Theft Deterrent Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment - rear. Refer to Front Floor Console Compartment Replacement .
1	Theft Deterrent Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Disengage tabs and slide forward to remove. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment - rear. Refer to Front Floor Console Compartment Replacement .

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Theft Deterrent Module

Procedure
