Outside Rearview Mirror Folding Control Module Replacement

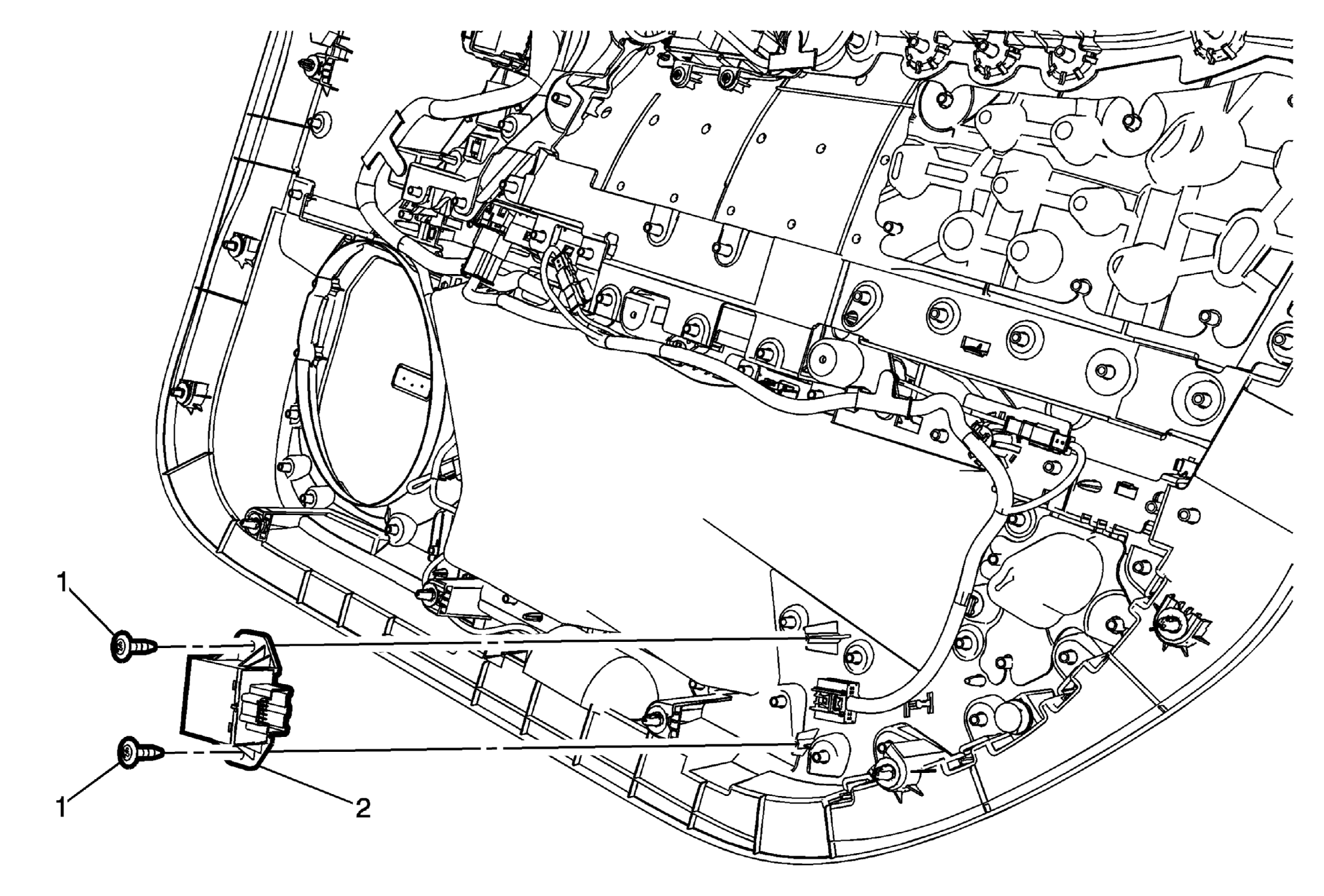

Fig 1: Outside Rearview Mirror Folding Control Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Outside Rearview Mirror Folding Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  1 N.m (9 lb in)
2	Outside Rearview Mirror Folding Control Module Procedure  Disconnect electrical connector.
