Front Seat Bolster Memory Module Replacement (AQJ)

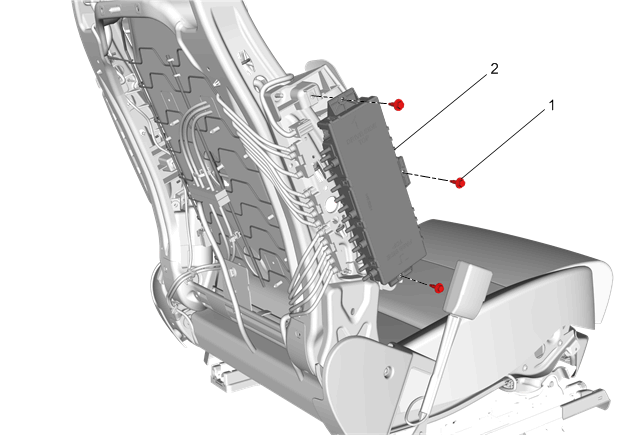

Fig 1: Front Seat Bolster Memory Module (AQJ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cover and Pad Replacement .
1	Front Seat Bolster Memory Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Bolster Memory Module Procedure Disconnect the electrical connector. Disconnect the air hoses from the module.

Callout

Component Name

WARNING:

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cover and Pad Replacement .

Front Seat Bolster Memory Module Fastener (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Bolster Memory Module

Procedure
