Installation Procedure

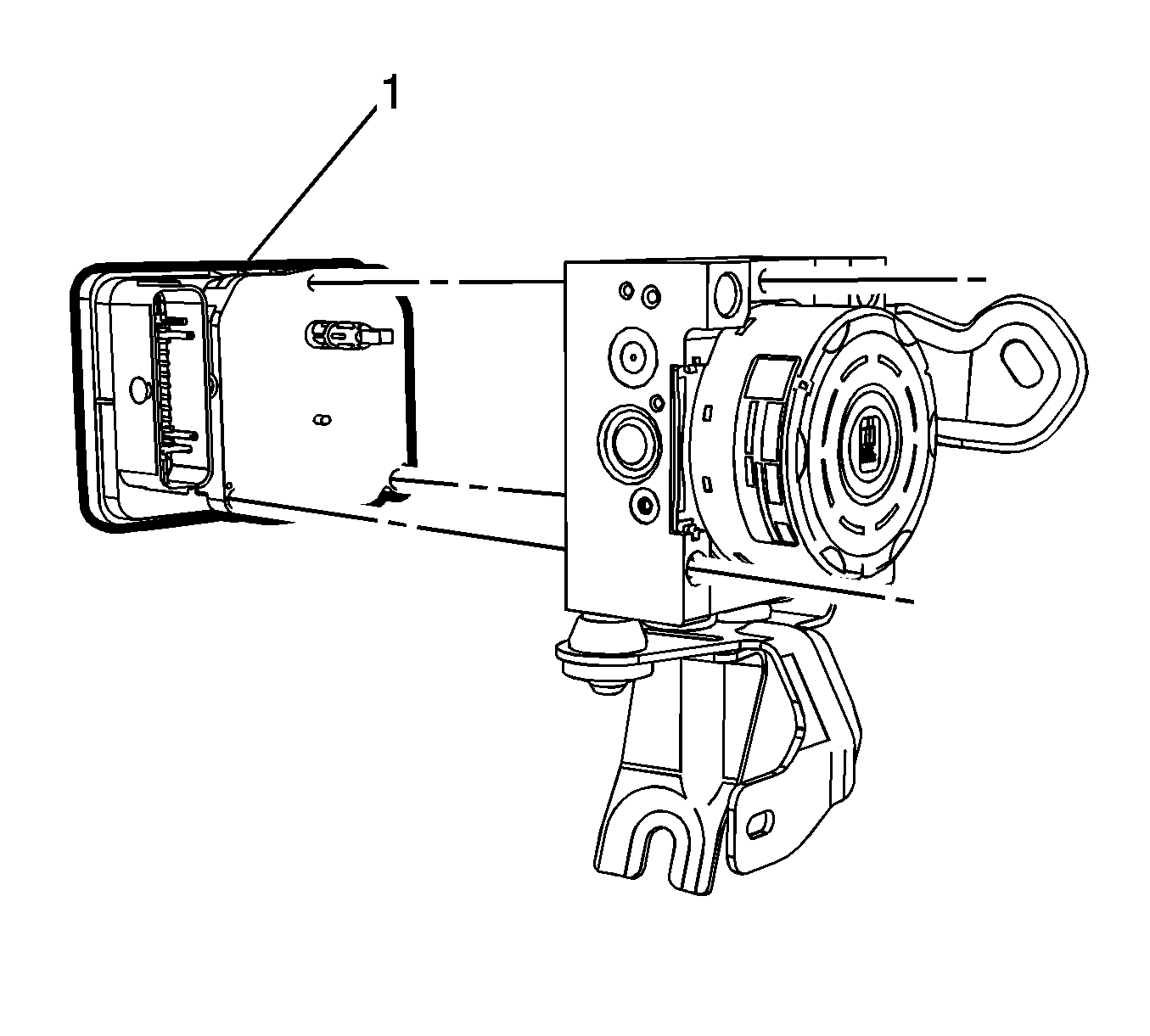

    Fig 1: Electronic Brake Control Module & Brake Pressure Modulator Valve
    GM2739972Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM (1) to the BPMV.

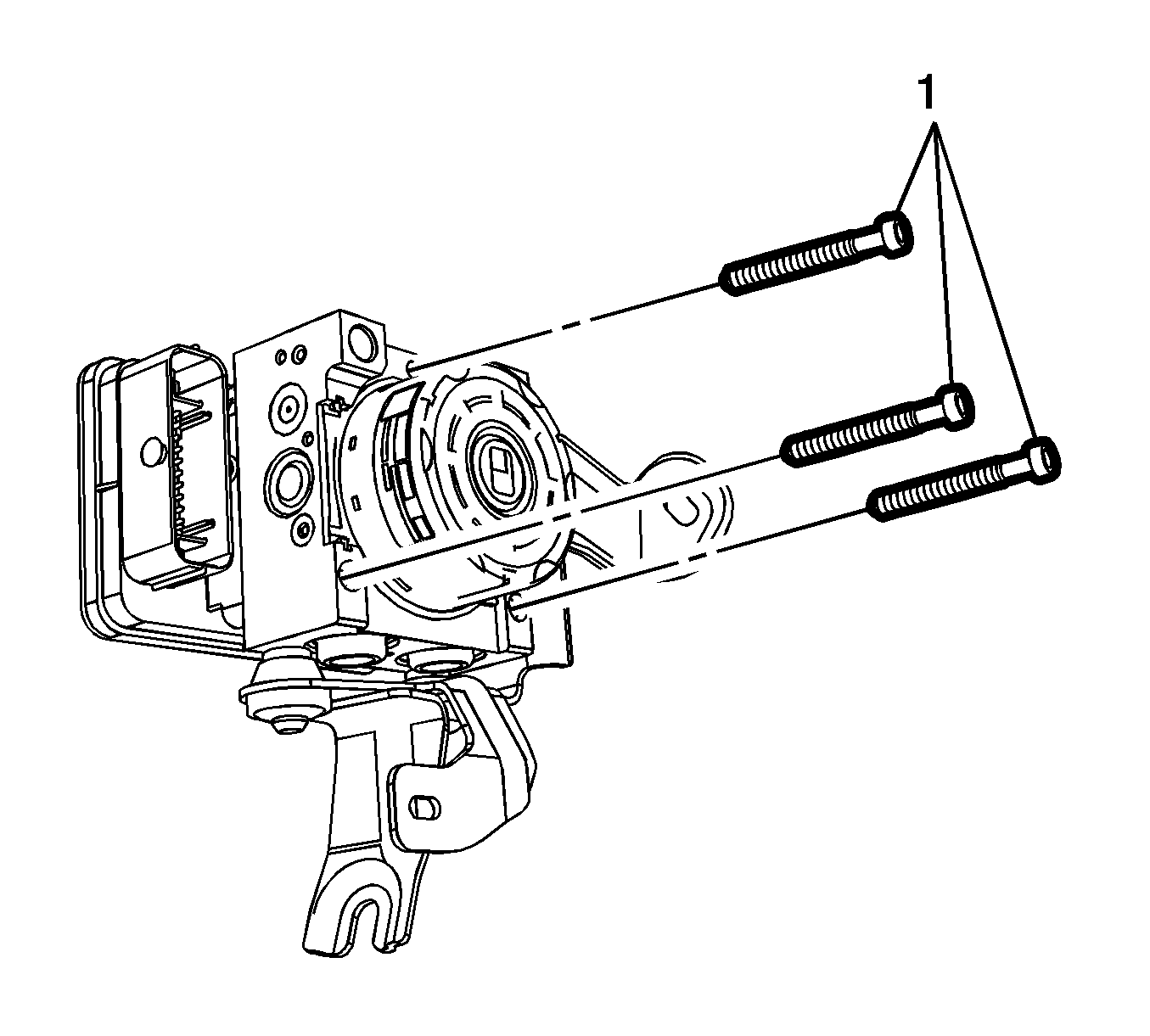

    2. Fig 2: Electronic Brake Control Module & Mounting Bolts
    GM2739970Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the EBCM bolts (1) and tighten to 5 N.m (44 lb in),
  3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
  4. Program the EBCM. Refer to Control Module References .
