Installation Procedure

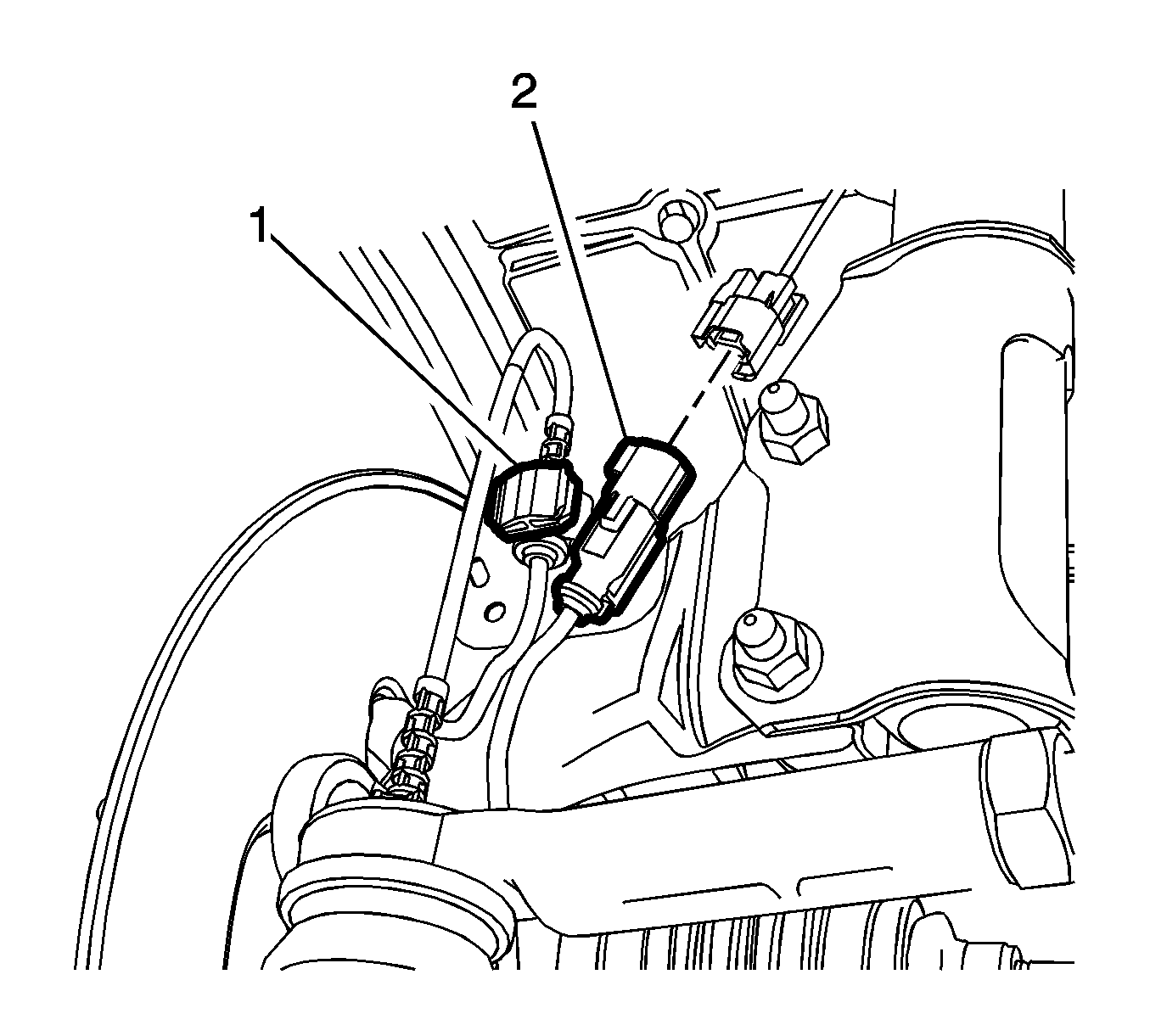

    Fig 1: Wheel Speed Sensor Harness & Clip (J55)
    GM2747796Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor harness (1) to the steering knuckle.
  2. Connect the electrical connector and install the wheel speed sensor harness clip (2) to the steering knuckle bracket.

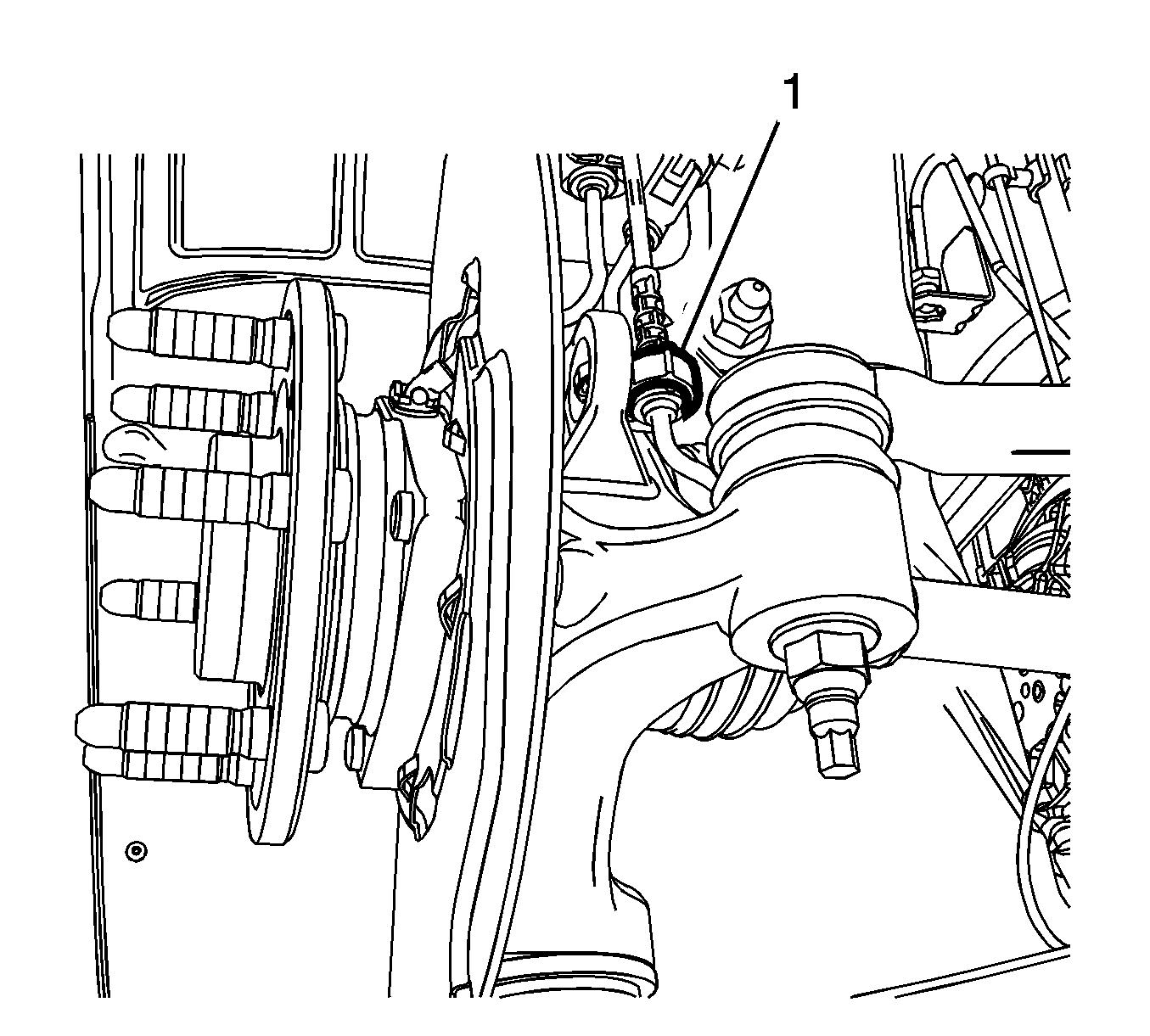

    3. Fig 2: Wheel Speed Sensor Harness Clip (J55)
    GM2747794Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness clip (1) to the steering knuckle.

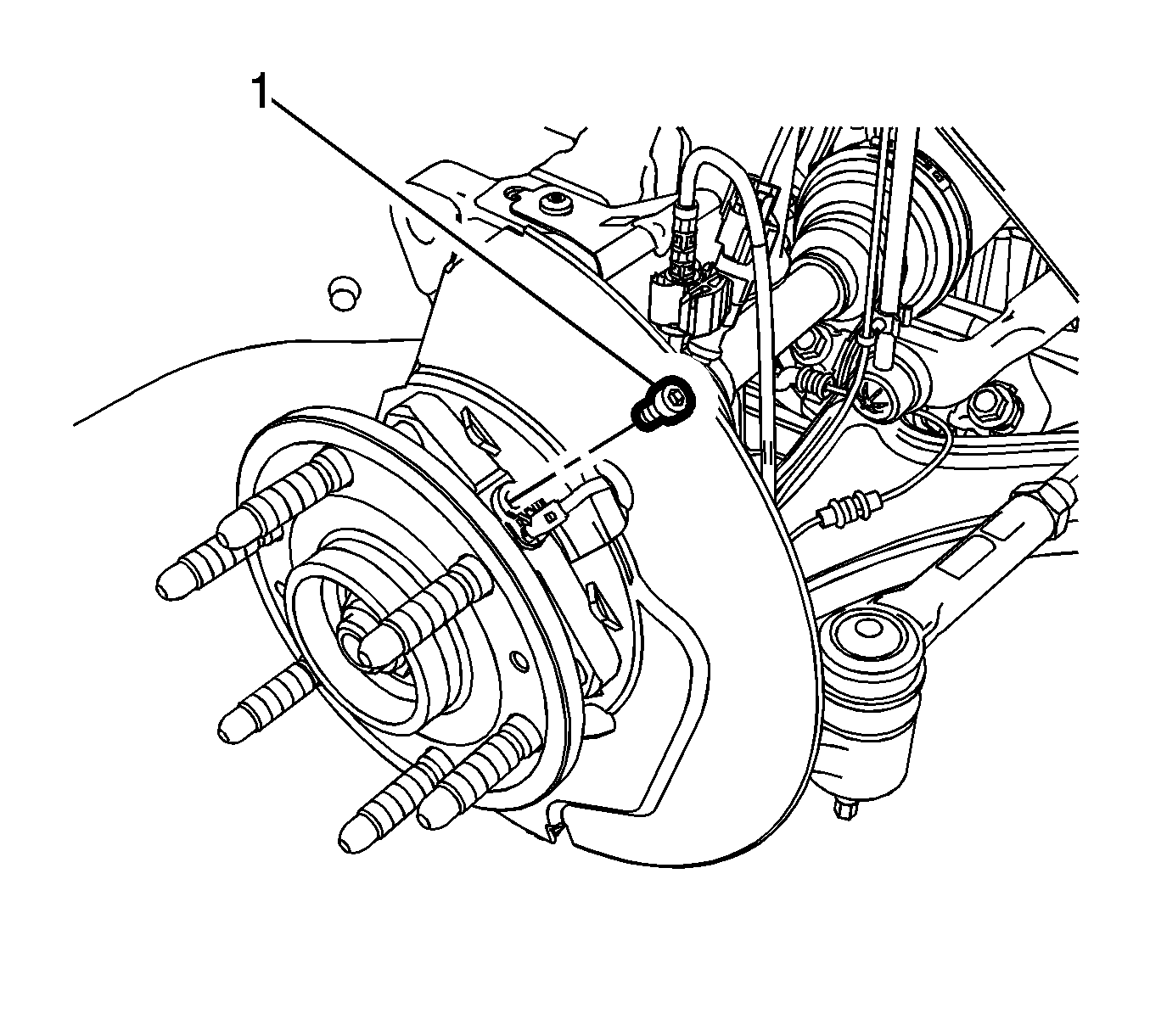

    4. Fig 3: Wheel Speed Sensor Bolt (J55)
    GM2747641Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor to the wheel bearing and hub assembly.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).
  6. Install the front brake rotor. Refer to Front Brake Rotor Replacement (J55) .
  7. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J55) .
  8. Perform the Diagnostic System Check - Vehicle .
