Floor Console Components - Internal Receptacle

Floor Console Components - Internal Receptacle

Items
1. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
2. E32R Cigarette Lighter Receptacle - Rear (DT4) E32R Cigarette Lighter Receptacle - Rear

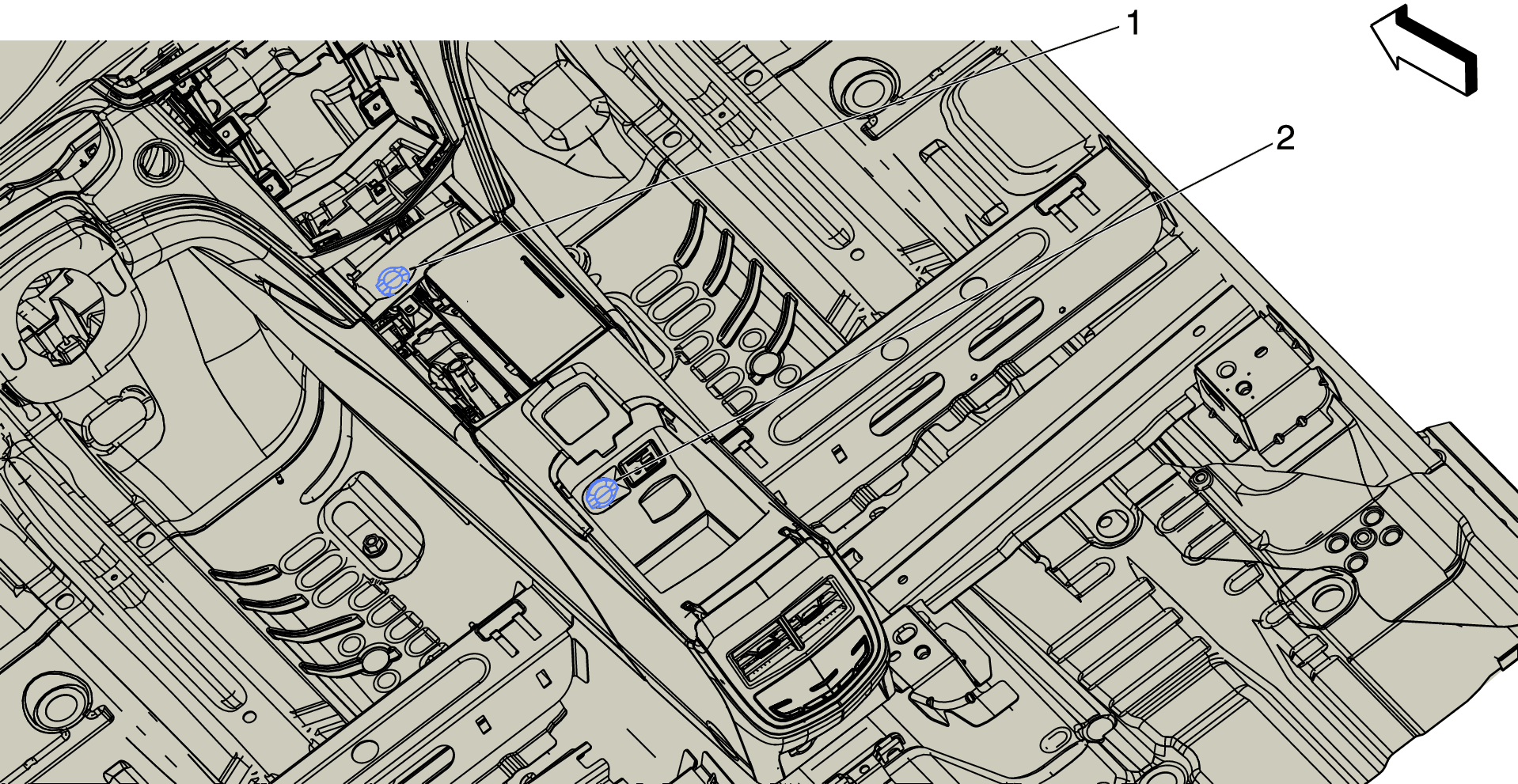

Fig 1: Floor Console Components - Internal Receptacle
GM3921437Courtesy of GENERAL MOTORS COMPANY
