Instrument Panel Components - Front

Instrument Panel Components - Front

Items
1. X84 Data Link Connector X84 Data Link Connector
2. S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch
3. S91 Park Brake Control Switch S91 Park Brake Control Switch
4. E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel
5. E1GA Accent Lamp - Left Middle Instrument Panel (TSP) E1GA Accent Lamp - Left Middle Instrument Panel
6. P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X2
7. P19H Speaker - Left Front Tweeter (UQA/UQG) P19H Speaker - Left Front Tweeter (UQA/UQG)P19H Speaker - Left Front Tweeter (UQS)
8. S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch
9. S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
10. P43 Collision Alert Indicators (-UV6) P43 Collision Alert Indicators
11. P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6)
12. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2P17 Info Display Module X4 (UWJ)
13. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
14. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
15. S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
16. P19V Speaker - Right Front Tweeter (UQS) P19V Speaker - Right Front Tweeter (UQA/UQG)P19V Speaker - Right Front Tweeter (UQS)
17. E1H Accent Lamp - Right Instrument Panel (TSP) E1H Accent Lamp - Right Instrument Panel
18. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
19. S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch X1
20. E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
21. F114P Knee Air Bag - Passenger (ANH/AYF) F114P Knee Air Bag - Passenger
22. A33 Media Disc Player (UWJ) A33 Media Disc Player X1 (UWJ)A33 Media Disc Player X2 (UWJ)A33 Media Disc Player X3 (UWJ)A33 Media Disc Player X4 (UWJ)A33 Media Disc Player X5 (UWJ)
23. A20 Radio/HVAC Controls A20 Radio/HVAC Controls
24. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
25. E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
26. F114D Knee Air Bag - Driver (ANH/AYF) F114D Knee Air Bag - Driver
27. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
28. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch

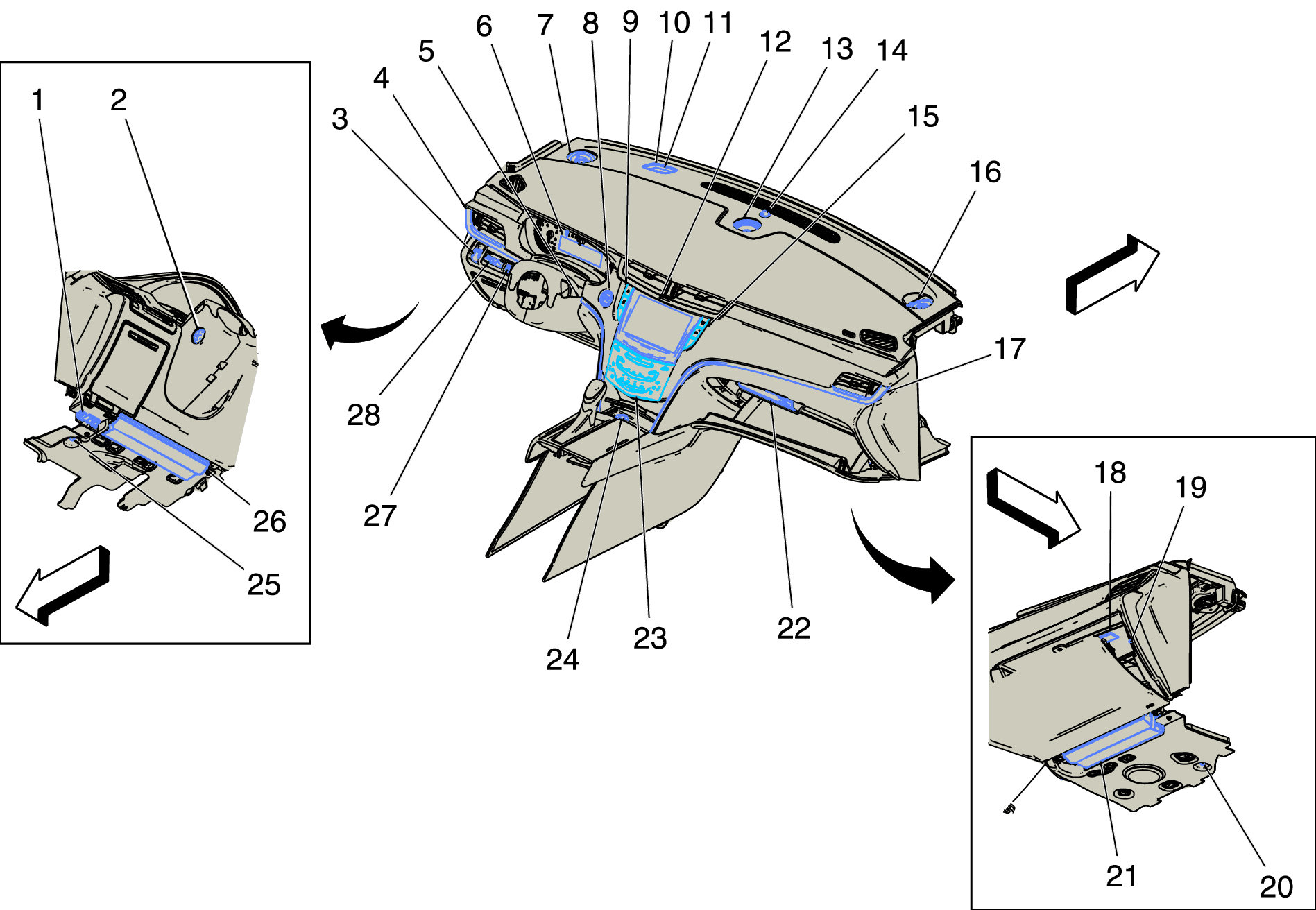

Fig 1: Instrument Panel Components - Front
GM2891076Courtesy of GENERAL MOTORS COMPANY
