Instrument Panel Components - Left Rear Side

Instrument Panel Components - Left Rear Side

Items
1. P43 Collision Alert Indicators (-UV6) P43 Collision Alert Indicators
2. K60 Steering Column Lock Module K60 Steering Column Lock Module
3. E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
4. F114D Knee Air Bag - Driver (ANH/AYF) F114D Knee Air Bag - Driver

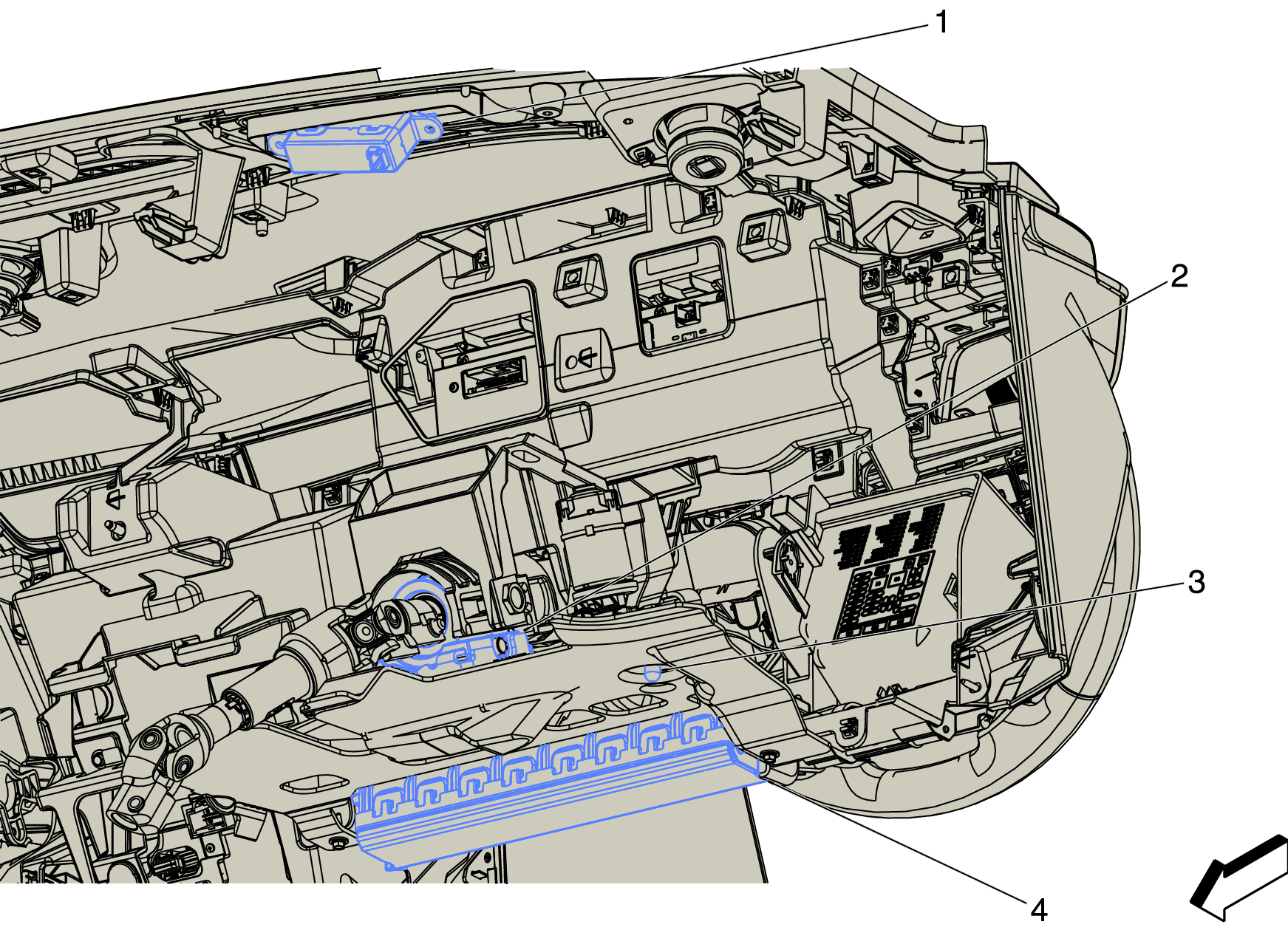

Fig 1: Instrument Panel Components - Left Rear Side
GM3910961Courtesy of GENERAL MOTORS COMPANY
