Instrument Panel Components - Rear

Items
1. P19V Speaker - Right Front Tweeter (UQS) P19V Speaker - Right Front Tweeter (UQA/UQG)P19V Speaker - Right Front Tweeter (UQS)
2. A33 Media Disc Player (UWJ) A33 Media Disc Player X1 (UWJ)A33 Media Disc Player X2 (UWJ)A33 Media Disc Player X3 (UWJ)A33 Media Disc Player X4 (UWJ)A33 Media Disc Player X5 (UWJ)
3. K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4 (CJ2)
4. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
5. P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6)
6. P43 Collision Alert Indicators (-UV6) P43 Collision Alert Indicators
7. P19H Speaker - Left Front Tweeter (UQA/UQG) P19H Speaker - Left Front Tweeter (UQA/UQG)P19H Speaker - Left Front Tweeter (UQS)
8. K9 Body Control Module K9 Body Control Module X1 (-CZ2)K9 Body Control Module X2 (-CZ2)K9 Body Control Module X3 (-CZ2)K9 Body Control Module X4 (-CZ2)K9 Body Control Module X5 (-CZ2)K9 Body Control Module X6 (-CZ2)K9 Body Control Module X7 (-CZ2)
9. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
10. T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
11. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X5 A11 Radio X6
12. K74 Human Machine Interface Control Module K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 K74 Human Machine Interface Control Module X3 K74 Human Machine Interface Control Module X4 K74 Human Machine Interface Control Module X5 K74 Human Machine Interface Control Module X7

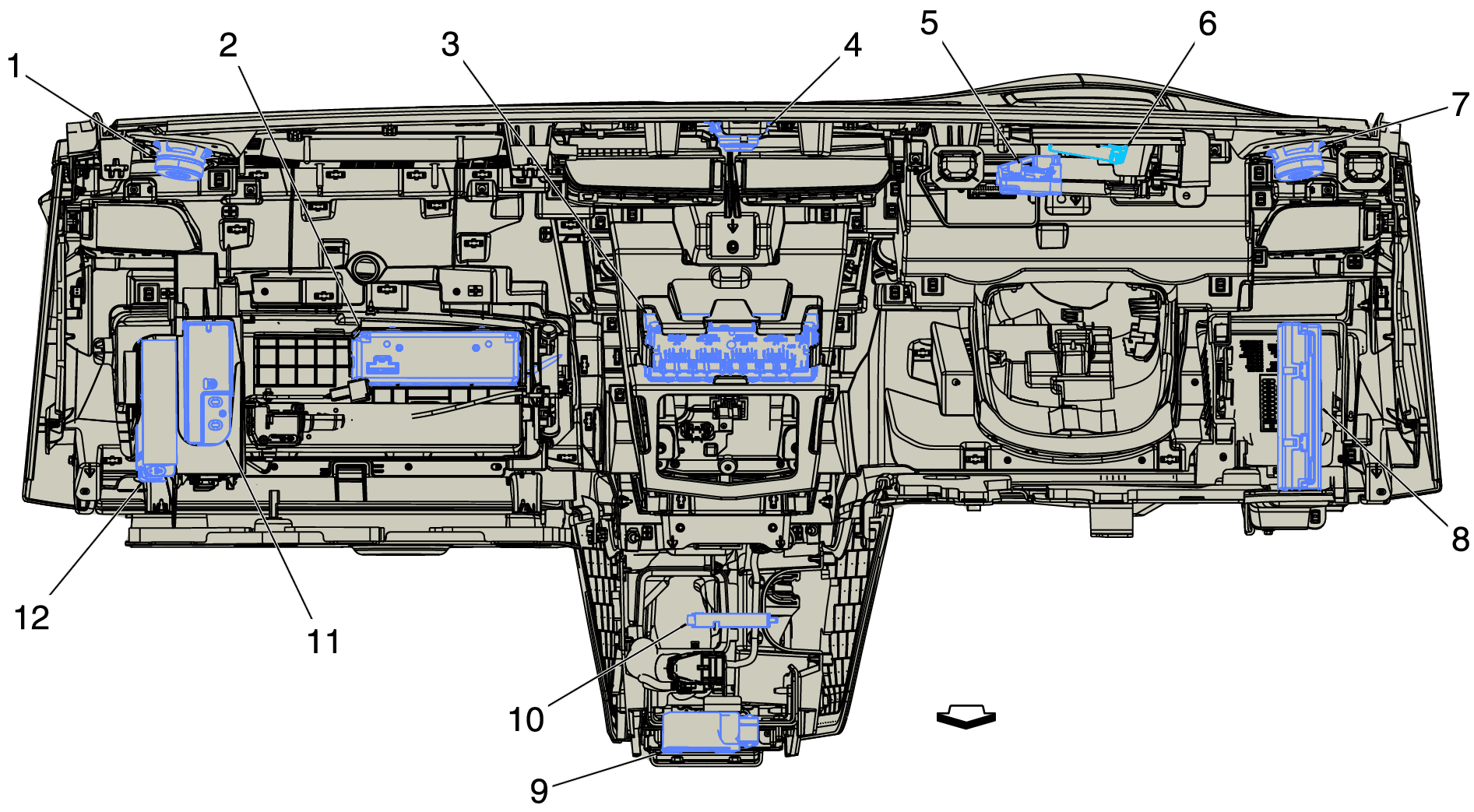

Fig 1: Instrument Panel Components - Rear

Courtesy of GENERAL MOTORS COMPANY
