Steering Wheel Components

Items
1. M65 Steering Column Telescope Motor
2. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
3. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 X85 Steering Wheel Air Bag Coil X2 X85 Steering Wheel Air Bag Coil X3 X85 Steering Wheel Air Bag Coil X4 (UVD)X85 Steering Wheel Air Bag Coil X5 (UVD)
4. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
5. K32 Steering Wheel Heating Control Module (UVD) K32 Steering Wheel Heating Control Module X1 (UVD)K32 Steering Wheel Heating Control Module X2 (UVD)K32 Steering Wheel Heating Control Module X3 (UVD)
6. S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
7. F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1 F107 Steering Wheel Air Bag X2
8. S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
9. E15 Steering Wheel Heater (UVD) E15 Steering Wheel Heater (UVD)
10. B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
11. K99 Steering Column Position Control Module K99 Steering Column Position Control Module X1 K99 Steering Column Position Control Module X2 K99 Steering Column Position Control Module X3 K99 Steering Column Position Control Module X4
12. M68 Steering Column Tilt Motor M68 Steering Column Tilt Motor

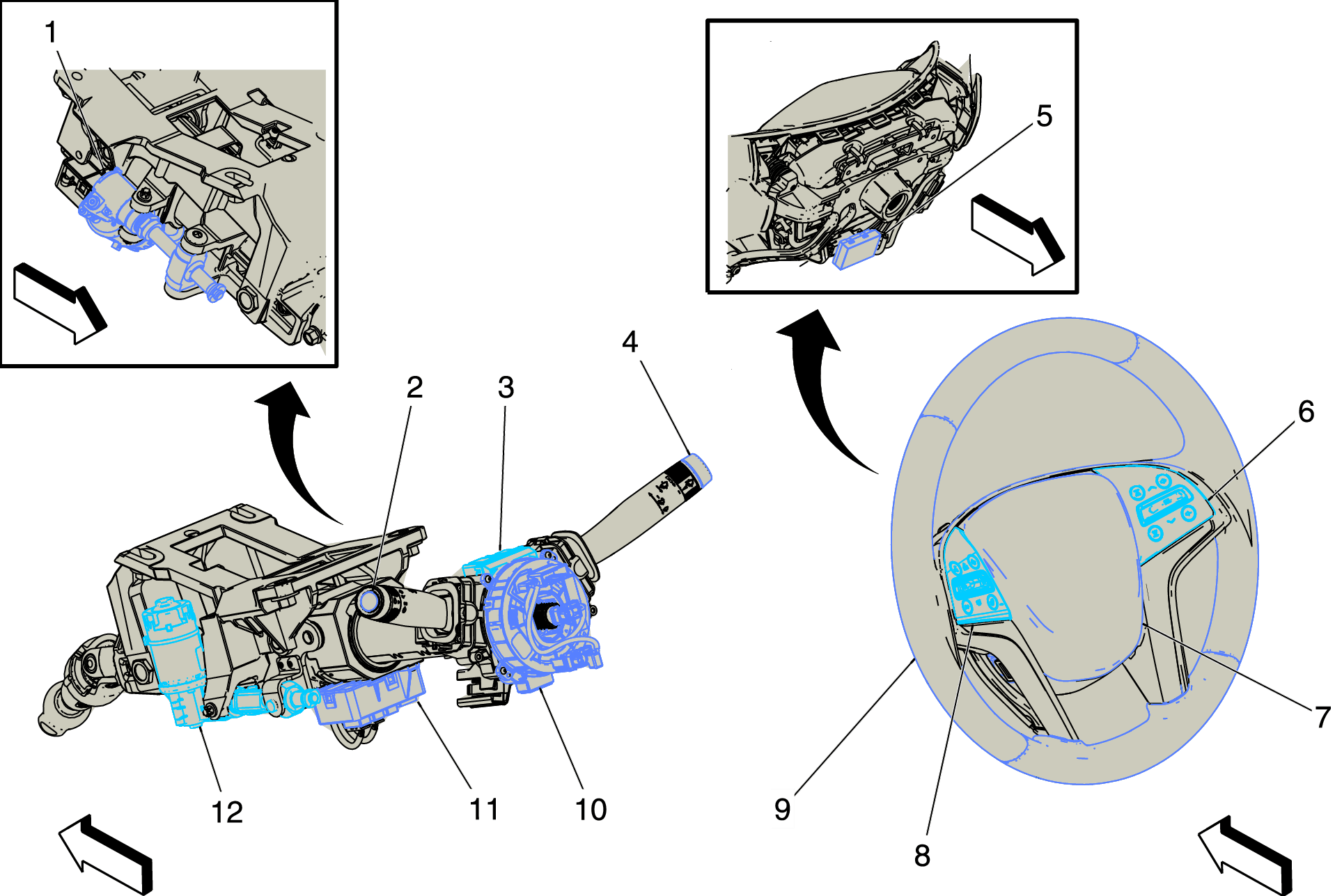

Fig 1: Steering Wheel Components

Courtesy of GENERAL MOTORS COMPANY
