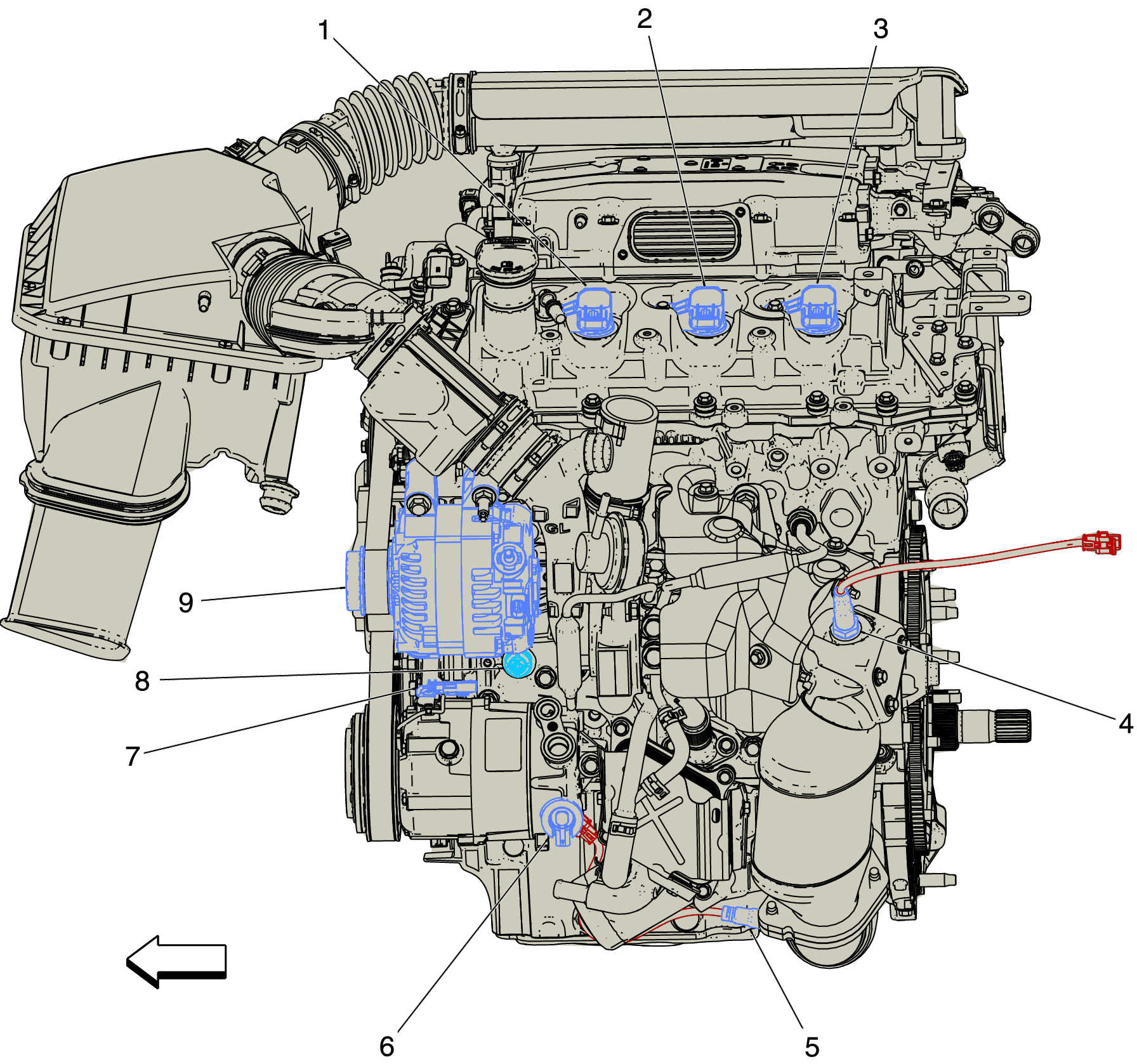

Left Front of Engine Components (LF3)
Left Front of Engine Components (LF3)
| Items |
|---|
| 1. T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX/LF3) |
| 2. T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX/LF3) |
| 3. T8F Ignition Coil 6 T8F Ignition Coil 6 (LFX/LF3) |
| 4. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX/LF3) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX/LF3) |
| 5. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX/LF3) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX/LF3) |
| 6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LF3) |
| 7. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LF3) |
| 8. B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LF3) |
| 9. G13 Generator G13 Generator X1 |
