Chassis Control Module Replacement

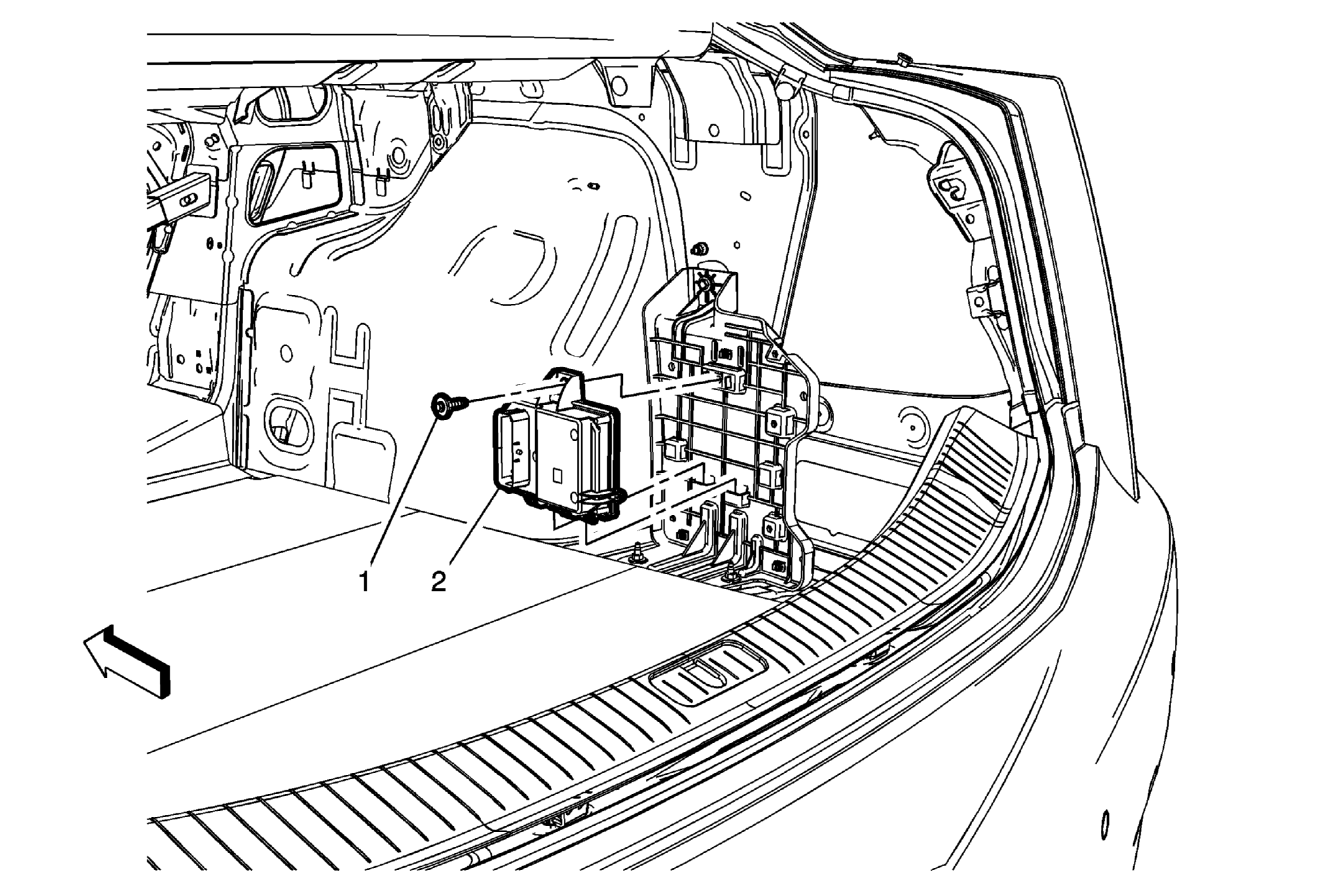

Fig 1: Fuel Pump Flow Control Module (Chassis Control Module)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Chassis Control Module Fastener (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Chassis Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the passenger rear side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side .

Chassis Control Module Fastener (Qty: 1)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Chassis Control Module

Procedure
