Installation Procedure

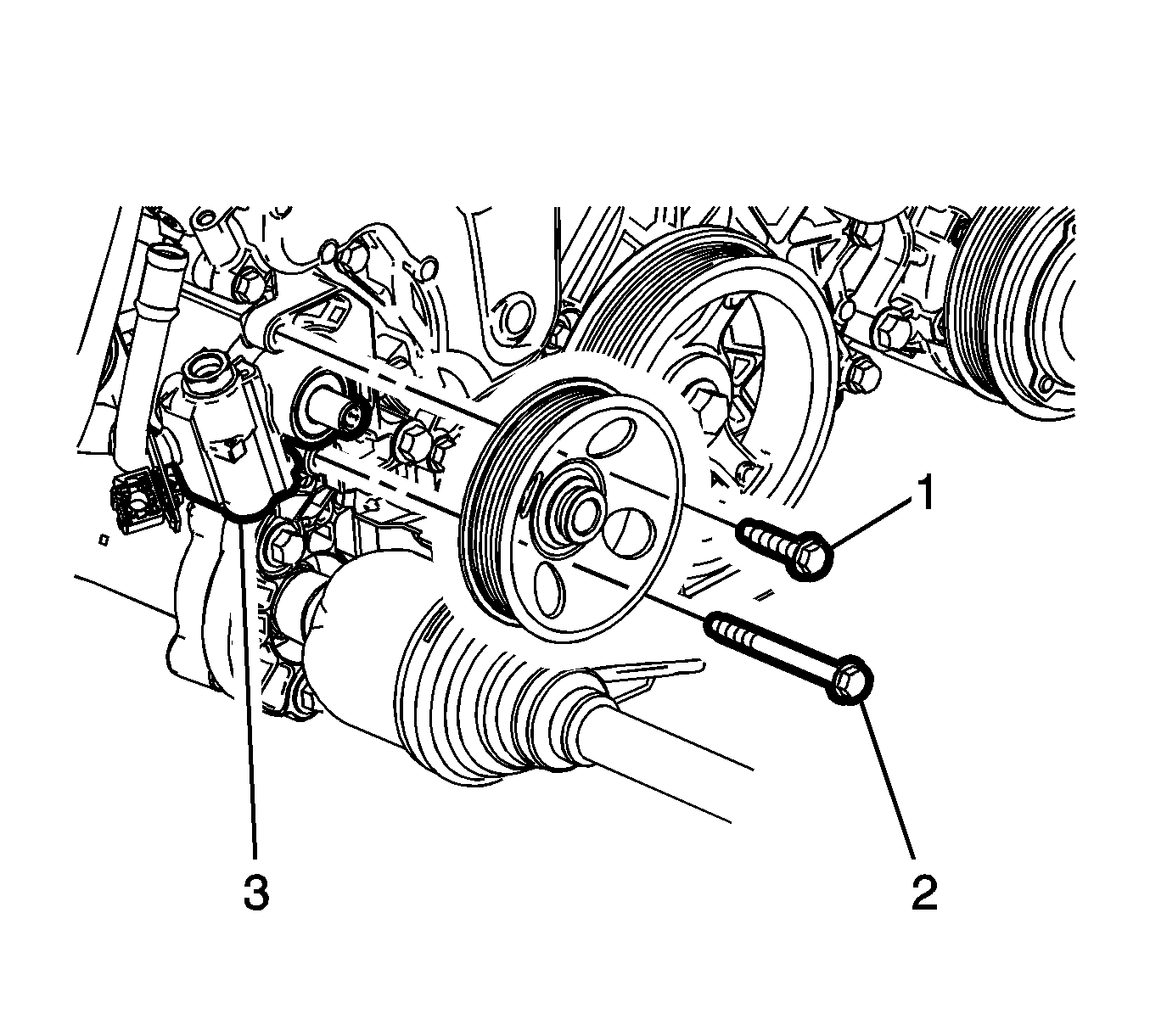

    Fig 1: Power Steering Pump And Bolts
    GM3370312Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering pump (3) on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Power Steering Pump Bolt (2) to 22 N.m (16 lb ft)
  3. Install and tighten Power Steering Pump Bolt (1) to 22 N.m (16 lb ft)

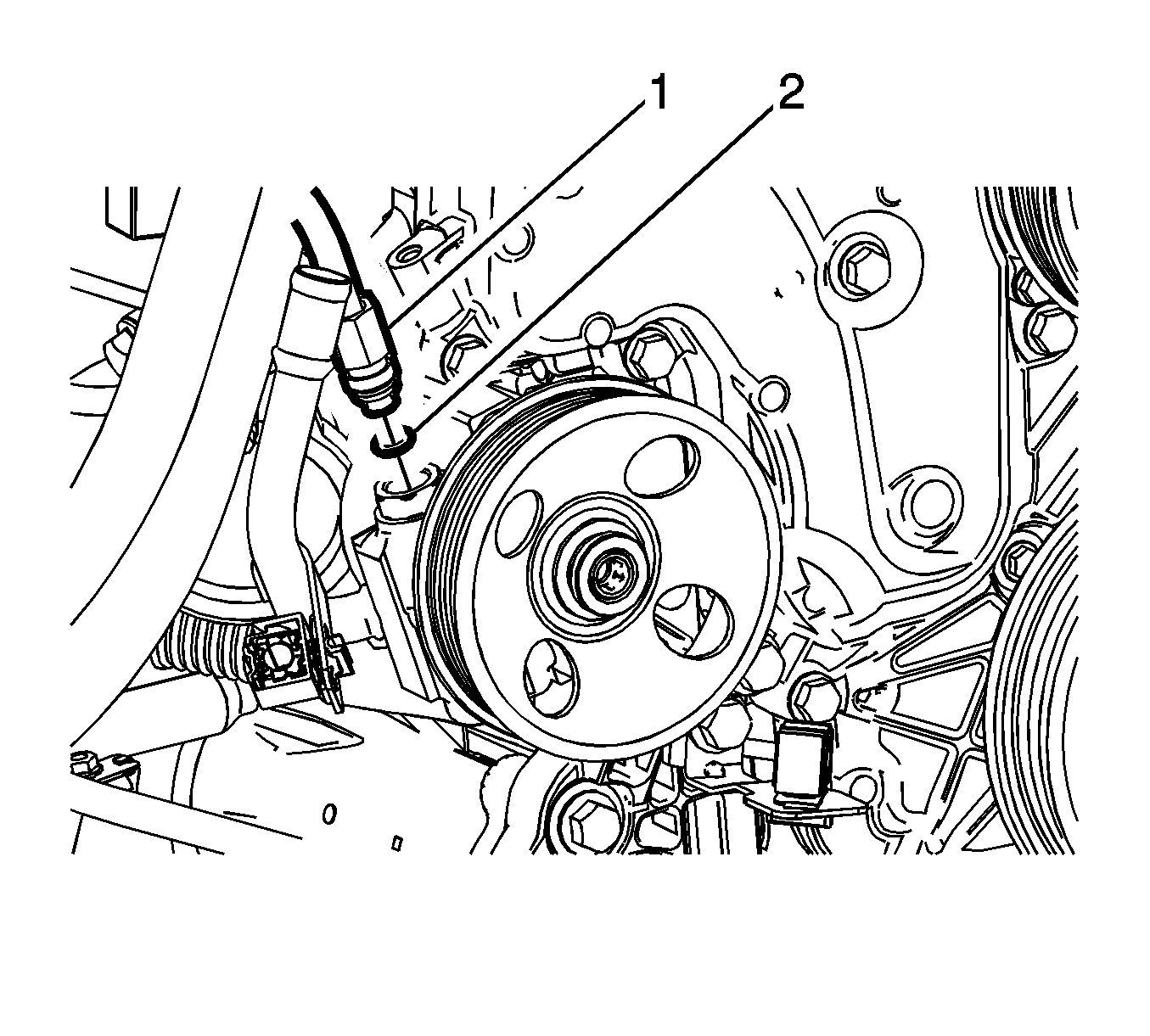

    4. Fig 2: Power Steering Gear Inlet Hose And Seal
    GM3337550Courtesy of GENERAL MOTORS COMPANY
  4. Install NEW Power Steering Gear Inlet Hose Seal (2)

    Install a NEW seal.

  5. Install and tighten Power Steering Gear Inlet Hose (1) to 34 N.m (25 lb ft)

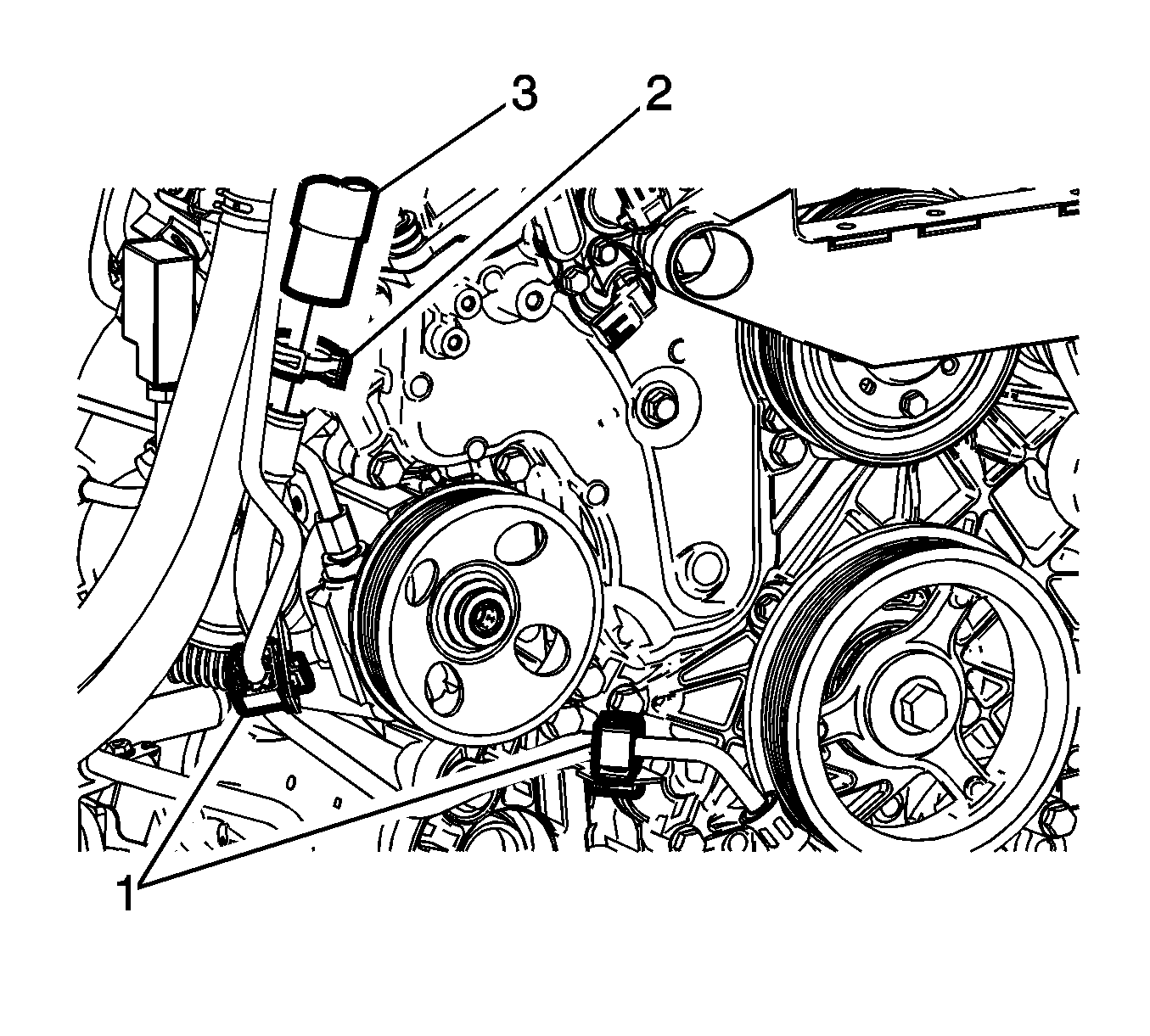

    6. Fig 3: Power Steering Fluid Reservoir Outlet Hose, Clips And Clamp
    GM3337524Courtesy of GENERAL MOTORS COMPANY
  6. Install Power Steering Fluid Reservoir Outlet Hose (3) @ Power Steering Pump
  7. Engage Power Steering Fluid Reservoir Outlet Hose Clamp (2)
  8. Secure the power steering fluid inlet hose in the power steering fluid reservoir inlet hose retaining clips (1).

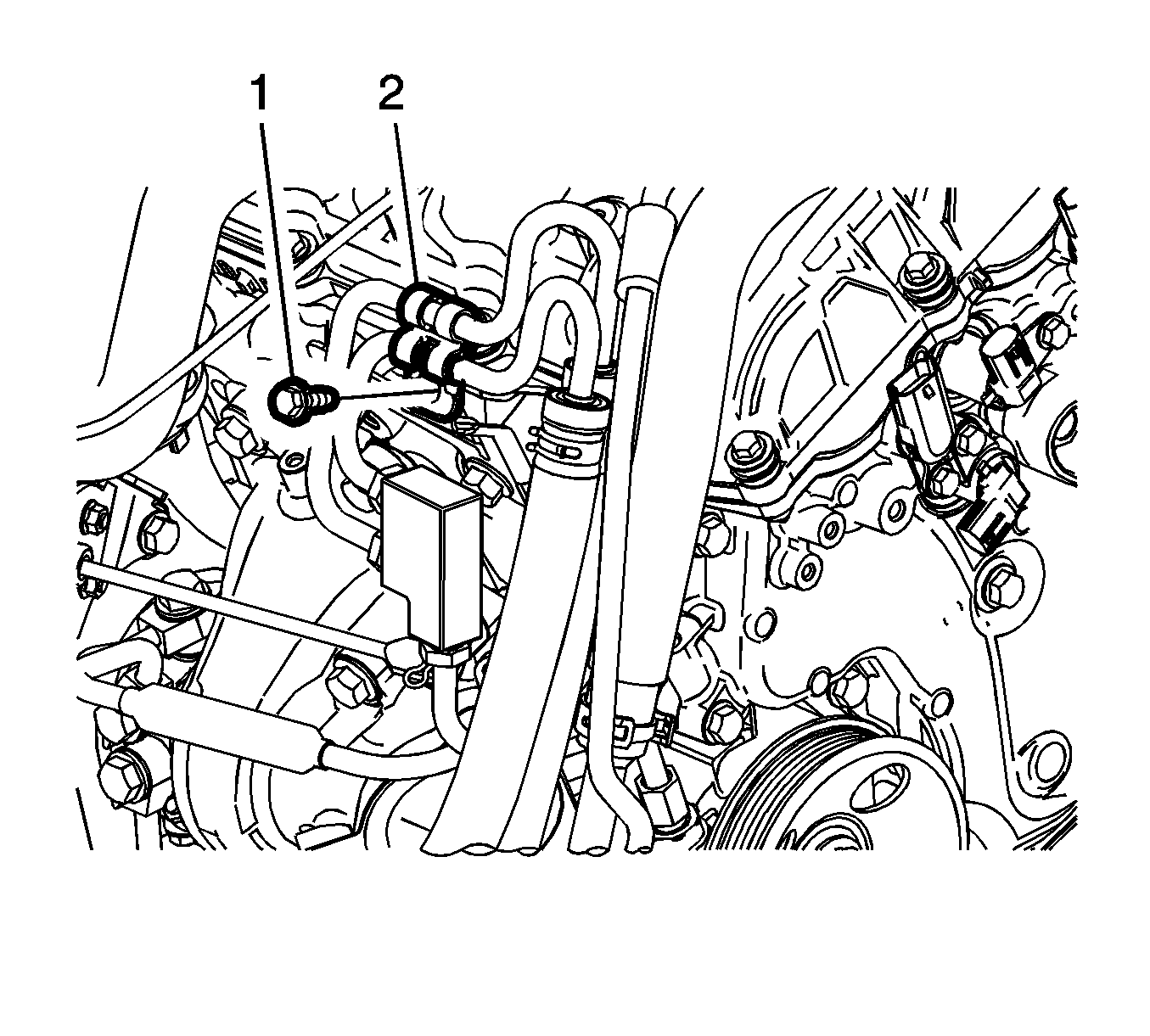

    9. Fig 4: Power Steering Gear Inlet Hose And Bracket Bolt (LF3)
    GM3337520Courtesy of GENERAL MOTORS COMPANY
  9. Position the power steering gear inlet hose (2) on the engine.
  10. Install and tighten Power Steering Gear Inlet Hose Bracket Bolt (1) to 9 N.m (80 lb in)
  11. Install Three-Way Catalytic Converter - Rear. Refer to Three-Way Catalytic Converter Replacement (Rear LF3)
  12. Install Drive Belt. Refer to Drive Belt Replacement
  13. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
