Steering Power Variable Control Module Replacement (NXC Only)

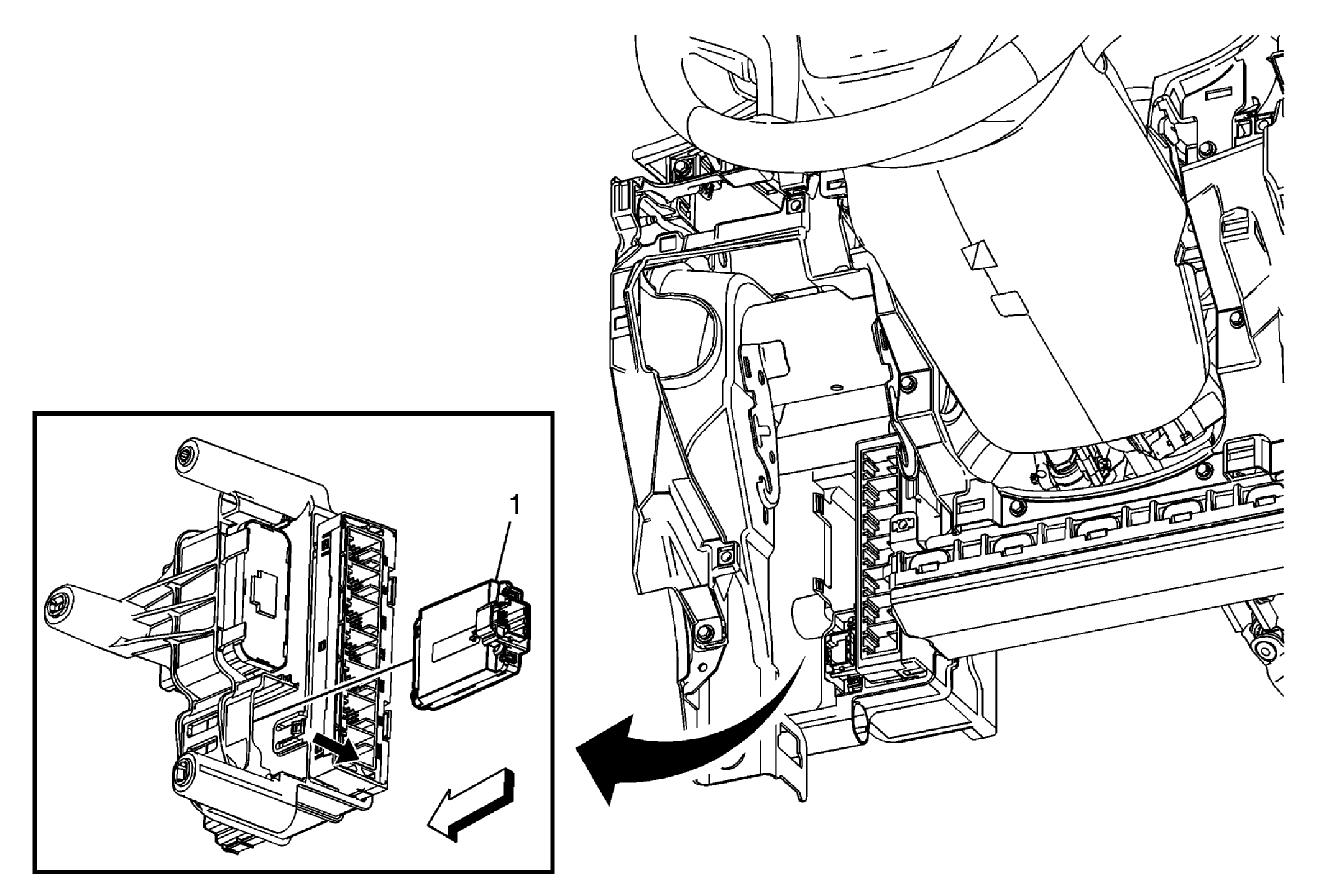

Fig 1: Steering Power Variable Control Module (NXC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement
1	Steering Power Variable Control Module Procedure Release the control module clips. Disconnect the connector from the control module. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement

Steering Power Variable Control Module

Procedure

Release the control module clips.
Disconnect the connector from the control module.
Perform the necessary programming and setup procedure: Control Module References
