Rear Toe Adjustment
Courtesy of GENERAL MOTORS COMPANY
- Measure the alignment on an alignment rack. Wheel Alignment Measurement

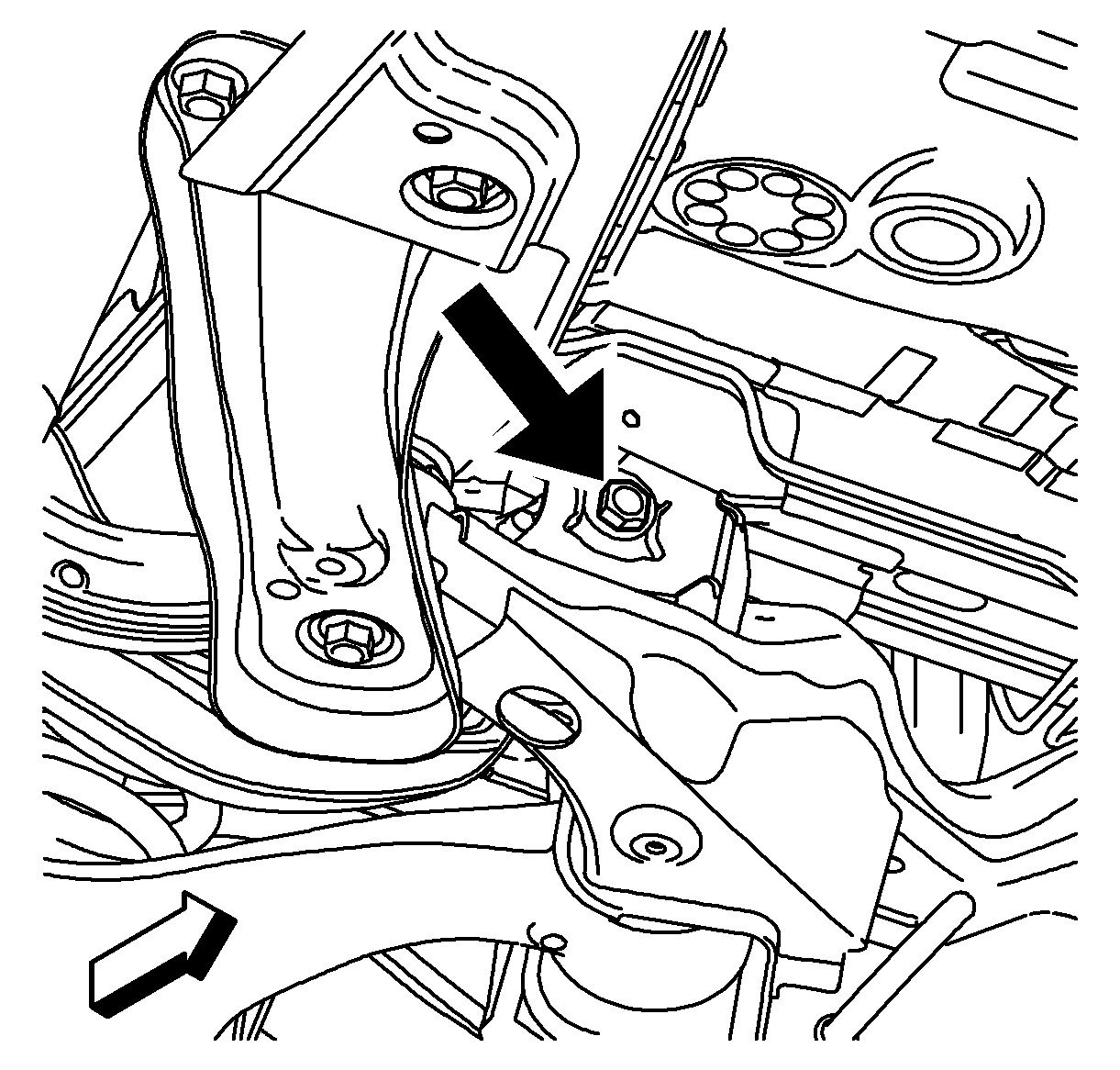

- If adjustment is necessary, loosen rear cam bolt and nut.
- Rotate the cam bolt in order to adjust the toe angle. Wheel Alignment Specifications
- Hand tighten the cam nut, but do not tighten the nut to the specification yet.
- Re-inspect the rear toe angle and adjust as necessary.
- Hold the cam bolt and tighten the cam nut. Adjust Link Replacement
- Repeat the procedure for the other rear wheel.
- Lower the vehicle.
