Bar Code

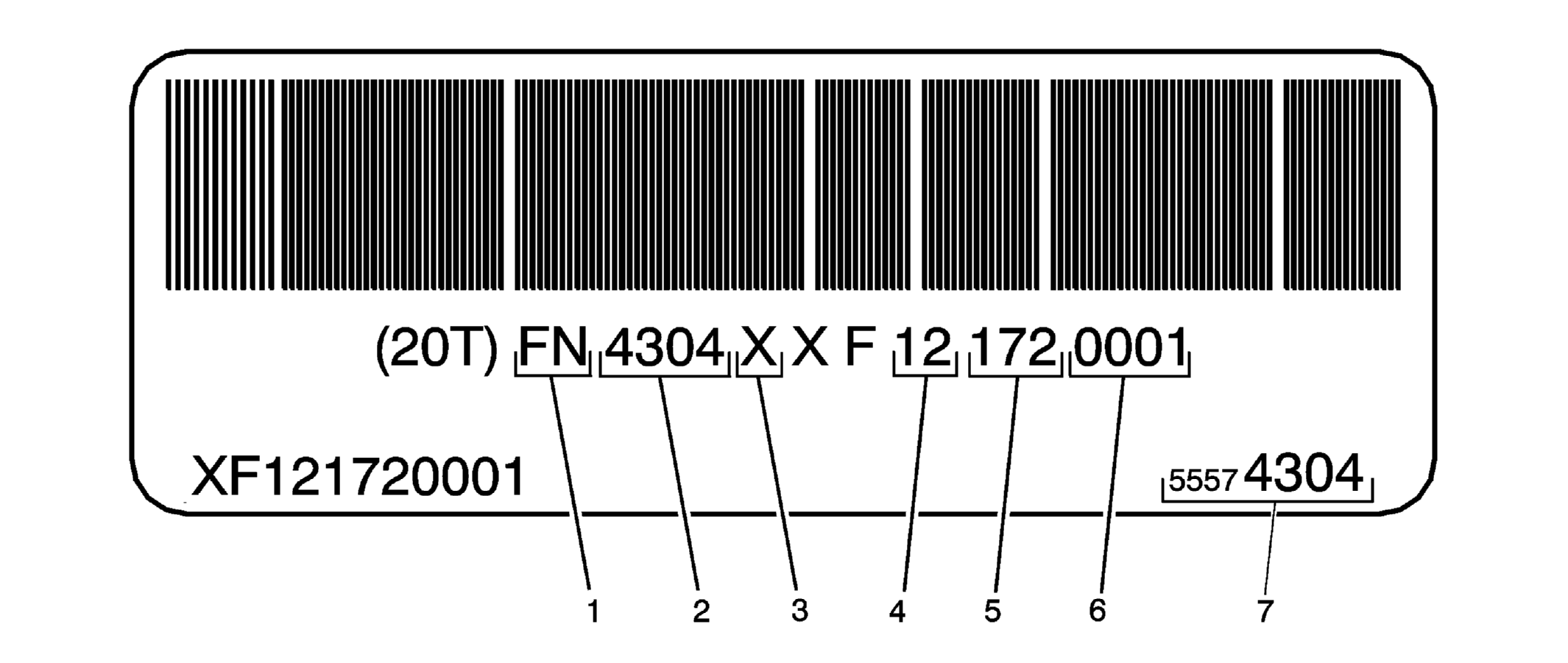

Fig 1: Bar Code Information Identification
GM2909774Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 GM Assigned Component Identification
2 Last 4 digits of GM Part Number
3 Supplier Identification
4 Calendar Year Produced
5 Julian Date
6 Supplier Serial Number
7 GM Part Number
