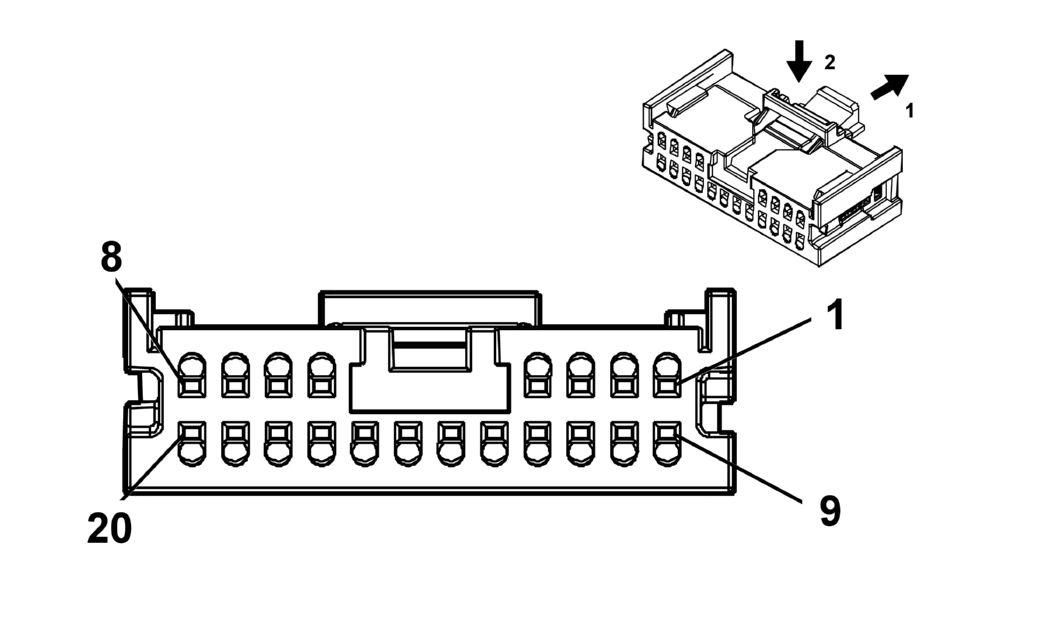

K188 Human Machine Interface Control Module Bypass Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 33328959
- Service Connector: 13596106
- Description: 20-Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19333221 |
EL-35616-58 (BK) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BU |
3240 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
GY/VT |
755 |
RAP Relay Coil Control |
I |
- |
| 3 |
0.35 |
GN/WH |
7527 |
Local Interconnect Network Serial Data Bus 5 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BK/WH |
1551 |
Signal Ground |
I |
- |
| 6 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
BN/BU |
2574 |
Combined Camera Video Signal #2 (+) |
I |
- |
| 9 |
0.35 |
GN/WH |
24 |
Backup Lamp Control |
I |
- |
| 10 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
I |
- |
| 19 |
0.35 |
BARE |
2576 |
Combined Camera Video #2 Drain Wire |
I |
- |
| 20 |
0.35 |
GY/BU |
2575 |
Combined Camera Video Signal #2 (-) |
I |
- |
