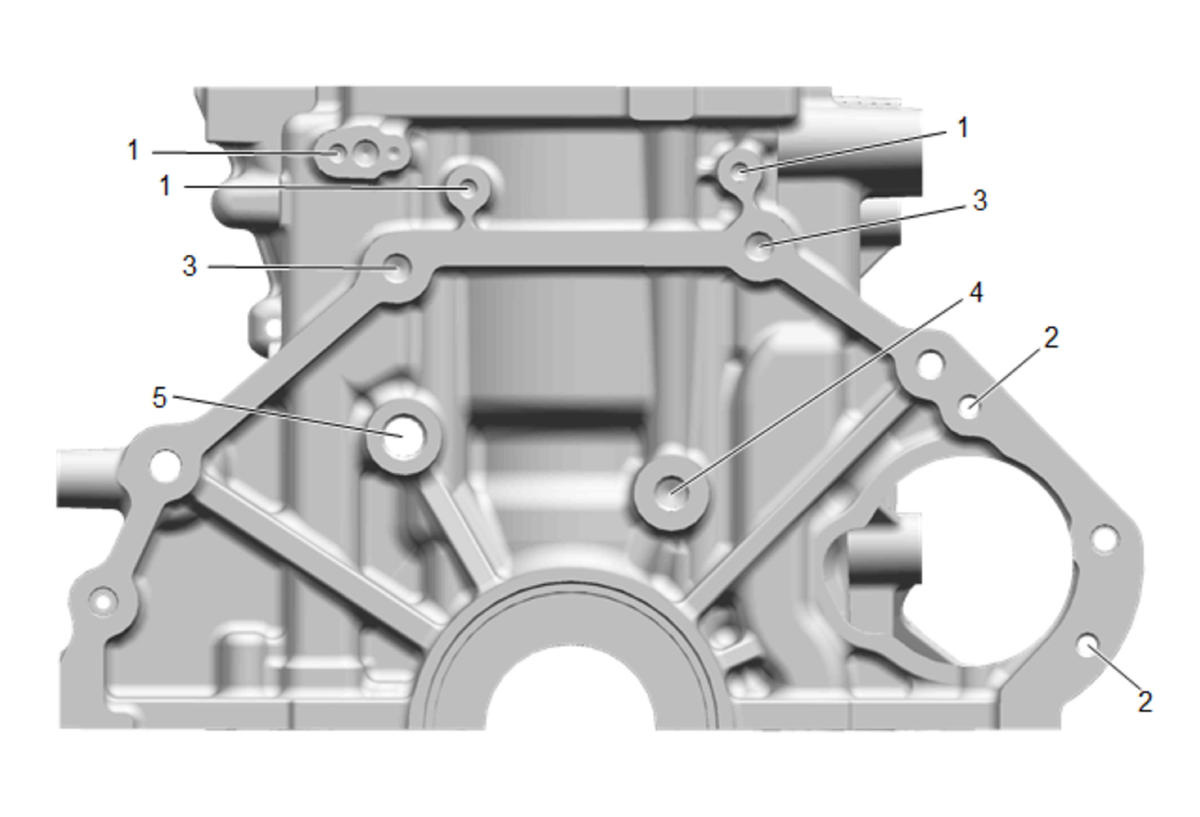

Engine Block - Back View
Engine Block - Back View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6 x 1.0 | 161031 | 201 | 202 | 203 | 204 | 23.0 | 0.907 | 23.0 | 0.907 |
| 2 | M8 x 1.25 | 181213 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
| 3 | M10 x 1.5 | 420 | 211 | 212 | 213 | 214 | 34.0 | 1.35 | 24.0 | 1.35 |
| 4 | M12 x 1.75 | 865 | 856 | 857 | 858 | 859 | 27.5 | 1.08 | 27.5 | 1.08 |
| 5 | M16 x 1.5 | 420 | 211 | 212 | 213 | 214 | 34.0 | 1.35 | 34.0 | 1.35 |
