Installation Procedure

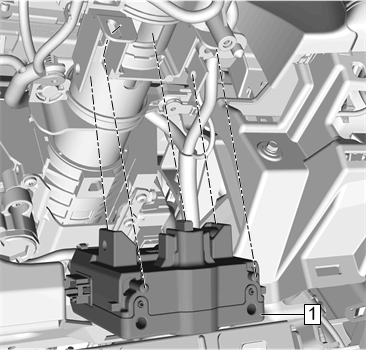

  1. GM4857838Courtesy of GENERAL MOTORS COMPANY

    Steering Column Friction Control Module (1) - Install

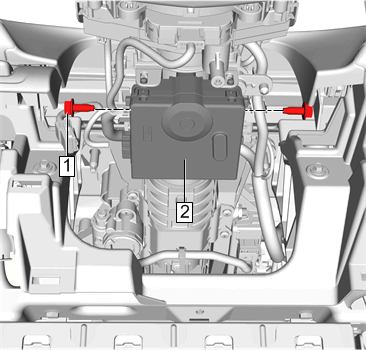

  2. GM4857834Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Friction Control Module Bolt (1) - Install and tighten [2x] 9.0 N.m (80 lb in)

  3. GM4857828Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  4. GM4644470Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement

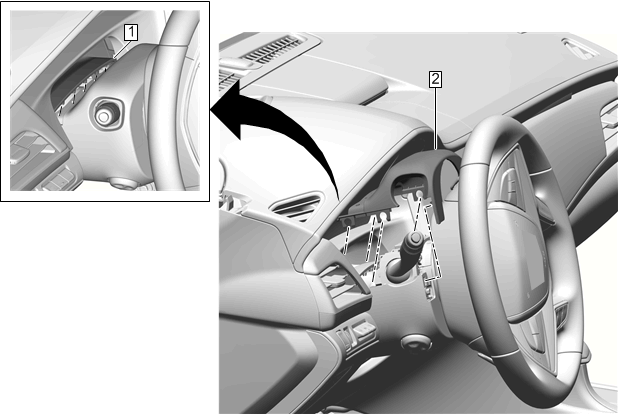

  5. GM4244910Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (2) - Install - Steering Column Upper Trim Cover Replacement (Without Driver Monitoring System Camera) Steering Column Upper Trim Cover Replacement (With Driver Monitoring System Camera)

  6. Enable the SIR System. SIR Disabling and Enabling
