Body Control Module Replacement

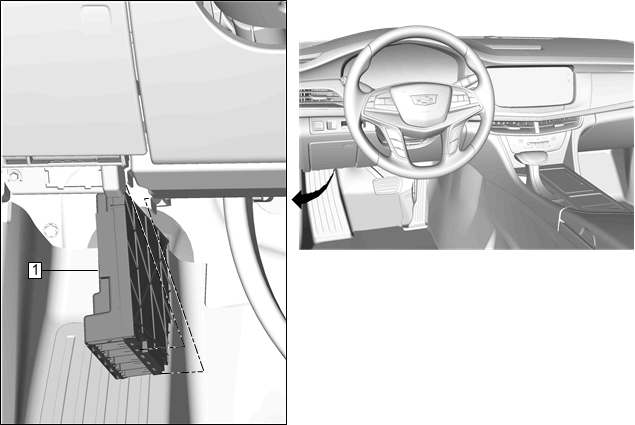

GM4234317Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
1 Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Push tabs to release the body control module from the bracket.
  3. Control Module References for programming and setup information, if required.
