Driver Monitoring System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

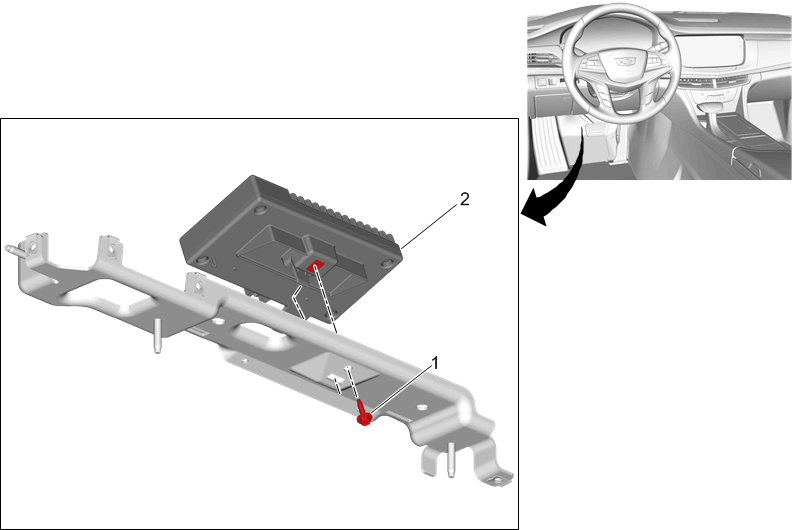

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Airbag Bracket Replacement
1	Driver Monitoring System Module Bolt CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Driver Monitoring System Module Procedure Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Driver Monitoring System Module Bolt

CAUTION:

Tighten
2.5N.m (22 lb in)

Driver Monitoring System Module

Procedure
