Video Processing Module Replacement

Courtesy of GENERAL MOTORS COMPANY

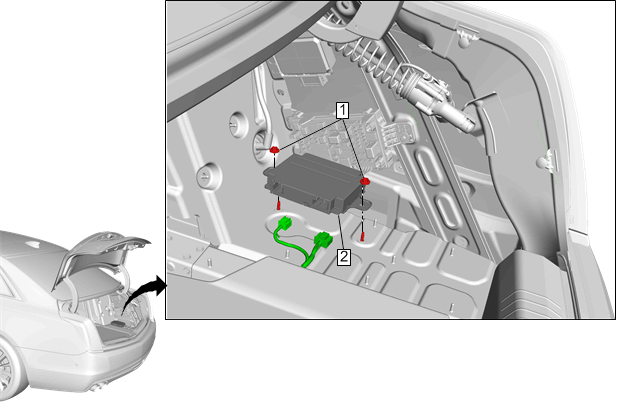

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Without HP9)Rear Compartment Side Trim Replacement - Right Side (With HP9)
1	Video Processing Module Nut[2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Video Processing Module Nut[2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure
