Human Machine Interface Control Module Replacement

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

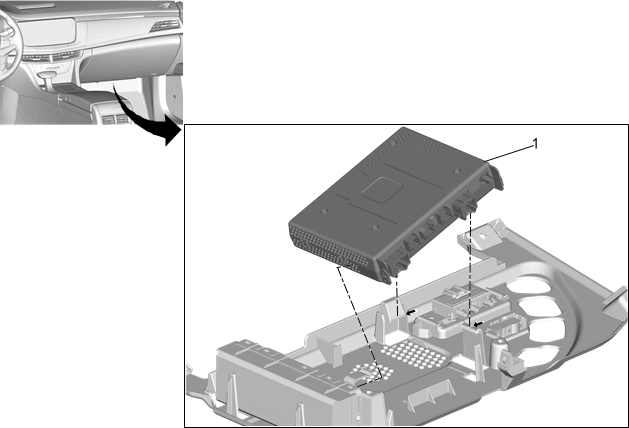

1	Human Machine Interface Control Module Procedure Release the retaining tabs. Control Module References for programming and set up procedures, if required.

Callout

Component Name

Human Machine Interface Control Module

Procedure
