Theft Deterrent Module Replacement

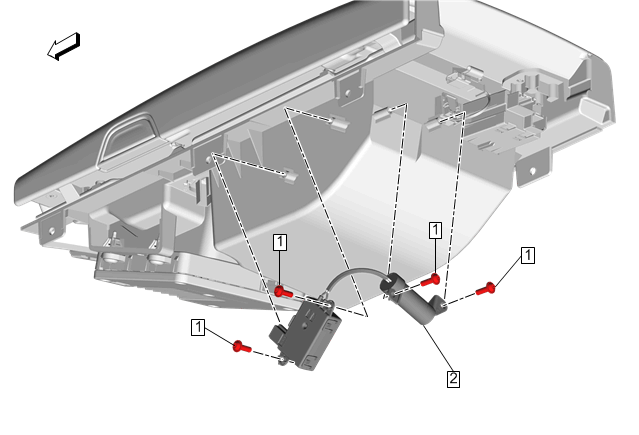

GM4255973Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Compartment Replacement
1 Theft Deterrent Module Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
1 N.m (9 lb in)
2 Theft Deterrent Module
