Outside Rearview Mirror Folding Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

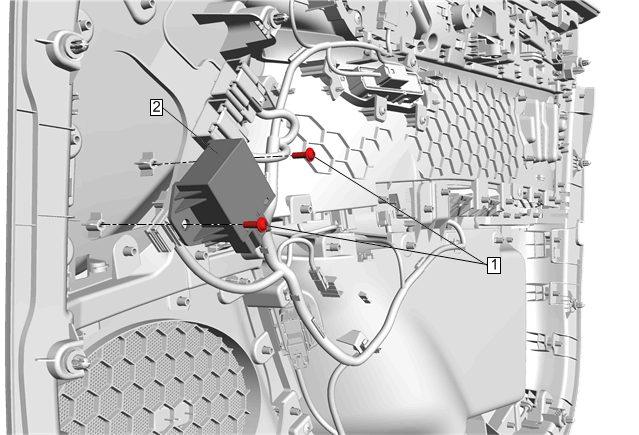

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement
1	Outside Rearview Mirror Folding Control Module Screw [2x] CAUTION: Refer to Fastener Caution . Tighten:  1 N.m (9 lb in)
2	Outside Rearview Mirror Folding Control Module Procedure  Disconnect electrical connector.
